Maple Leaf Powerwall 48V100AH Battery - 10 Year Warranty Home Back Up Battery Bank | UL Approved ESS Solution | CSA recognized UL1973, UL9540A Approved

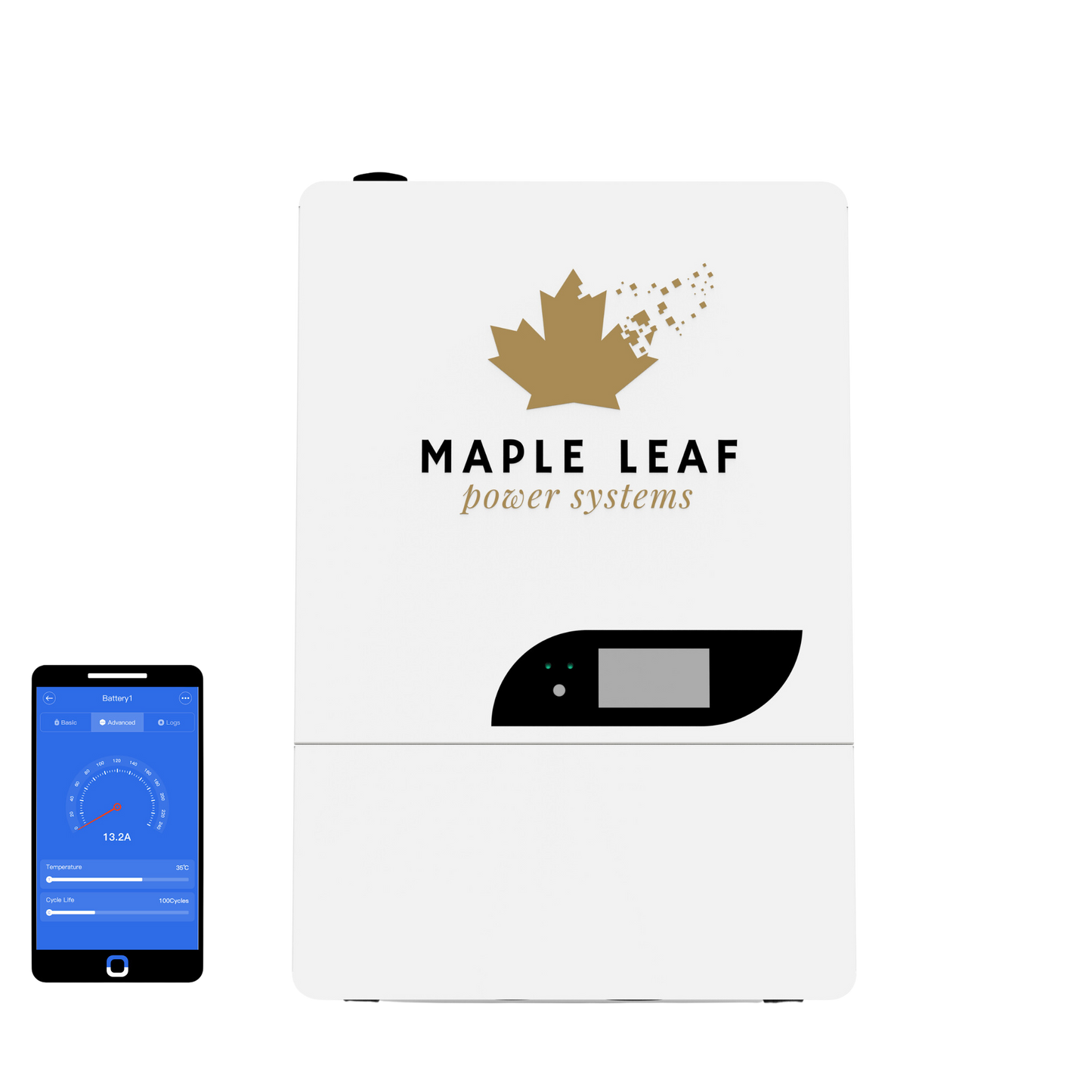

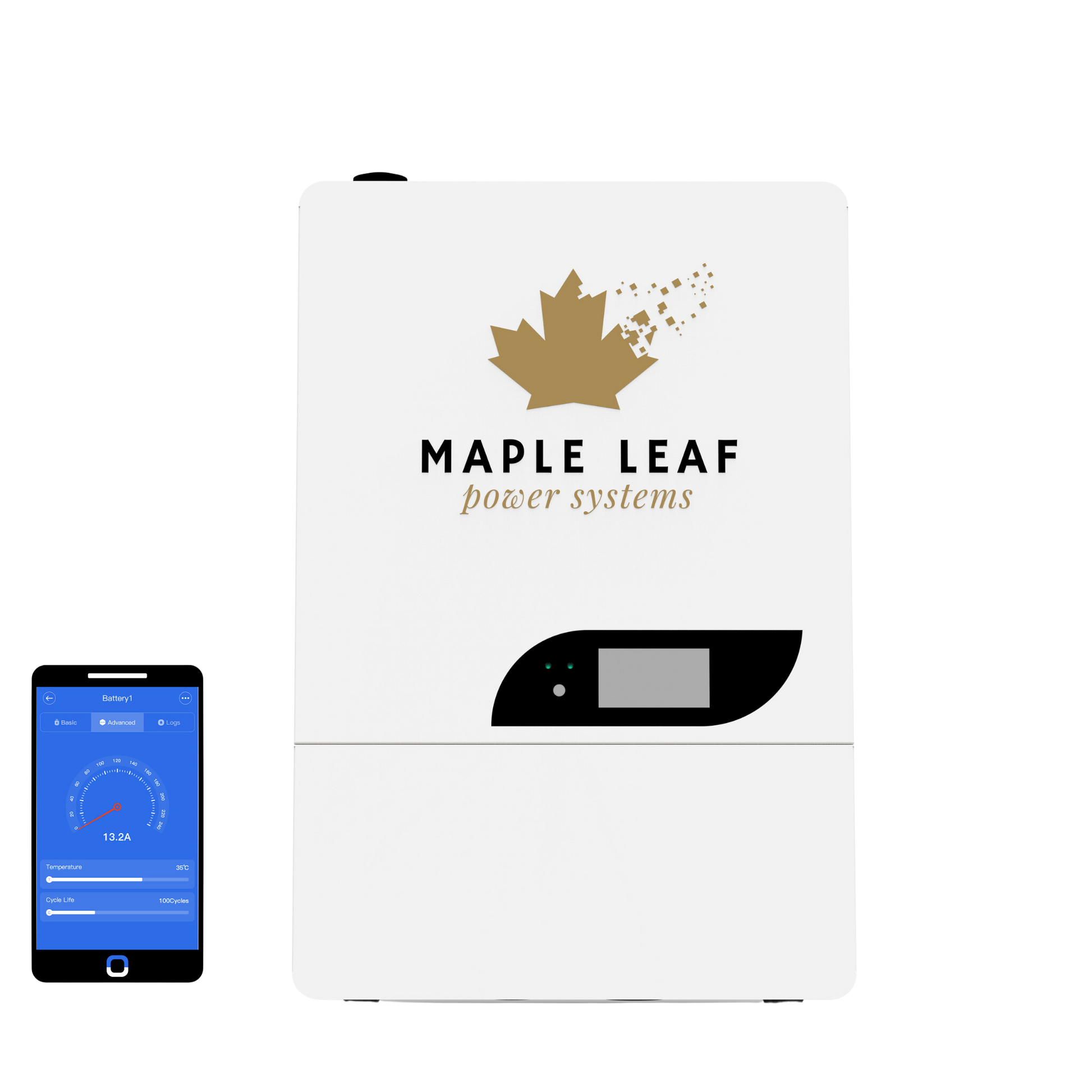

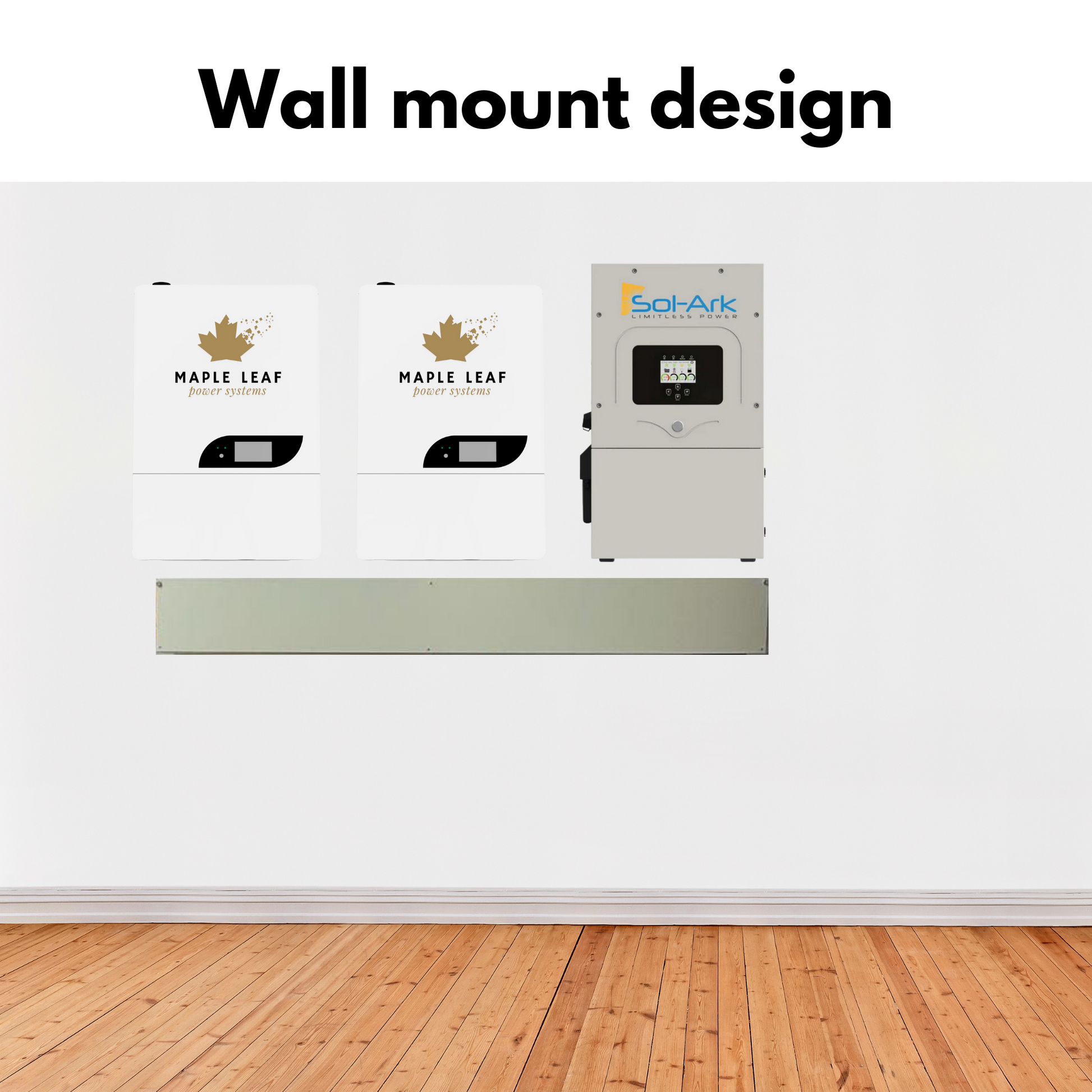

MapleLeaf power systems is committed to delivering both the highest quality battery and safest overall design at a value conscious price point to the Canadian market. This trend continues with the release of the 48V100AH Powerwall Lithium Iron Phosphate battery, a true Grade A+ Lithium Iron Phosphate (LiFePO4) battery pack designed to be easily installed on a wall next to your inverter unit.
A 16S (48v nominal) 5.12 kW-h LiFePO4 battery bank is paired with a digital battery management system (BMS), to provide automated and maintenance free battery operation, with a typical lifespan of over 4000 cycles. The assembly features full CAN bus & RS485 protocols to pair with most common 48V inverters, as well as RS-232 control for PC configuration.

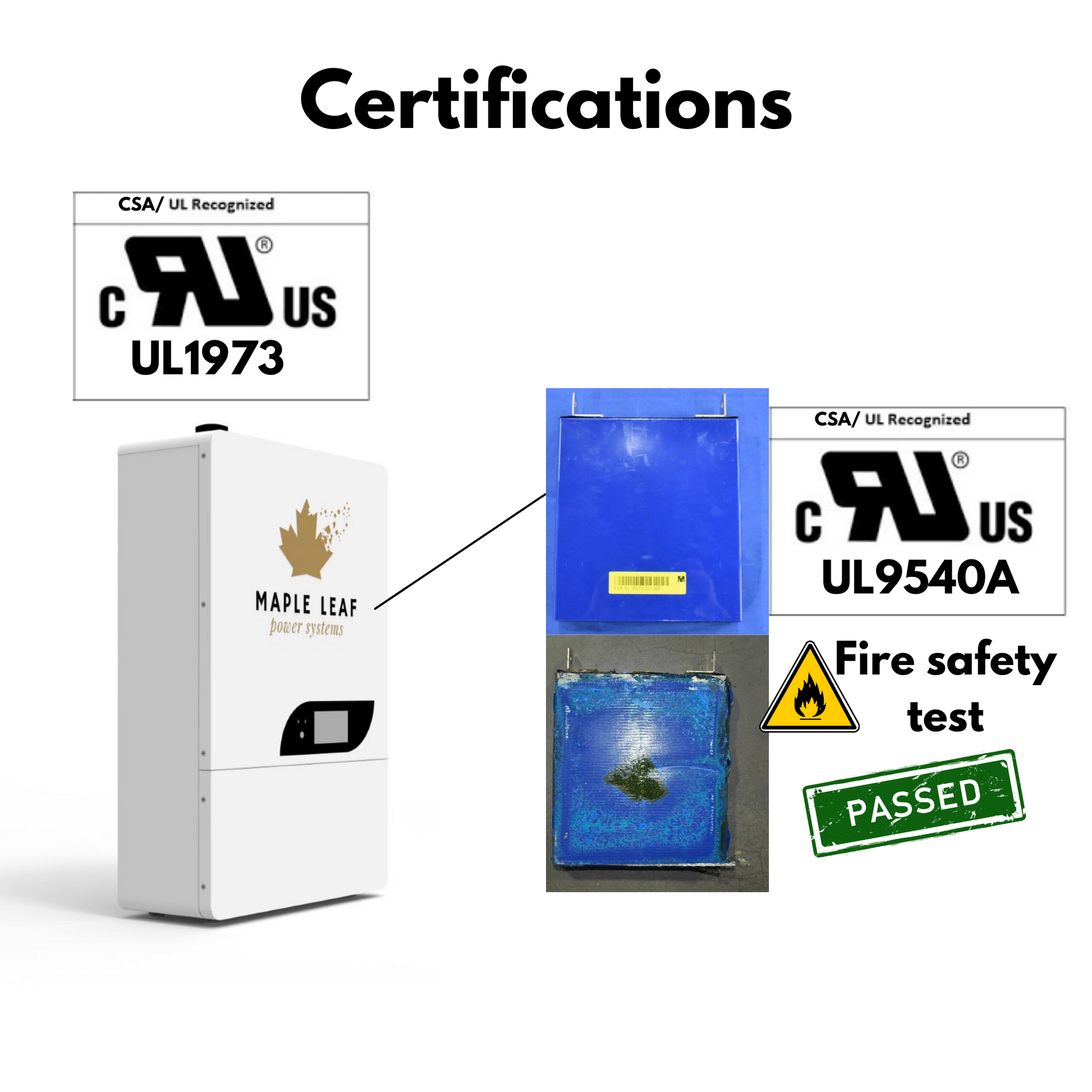

Now UL1973 Certified by cRU
48 Volt (51.2 Nominal) 100Ah, 5.12 kWh
10 Year& 20 Year Typical Lifespan
Cells rated for 80% Capacity after 4000 Cycles, 100% DOD @1C Rate
Typical capacity at 80% DOD @.5C Rate is over 7000 Cycles
Maintenance Free
Built-In Smart Battery Management System (BMS)
5 Temperature sensors, protected from low and high temperatures
Pre-Charge Circuit to Prevent BMS Damage

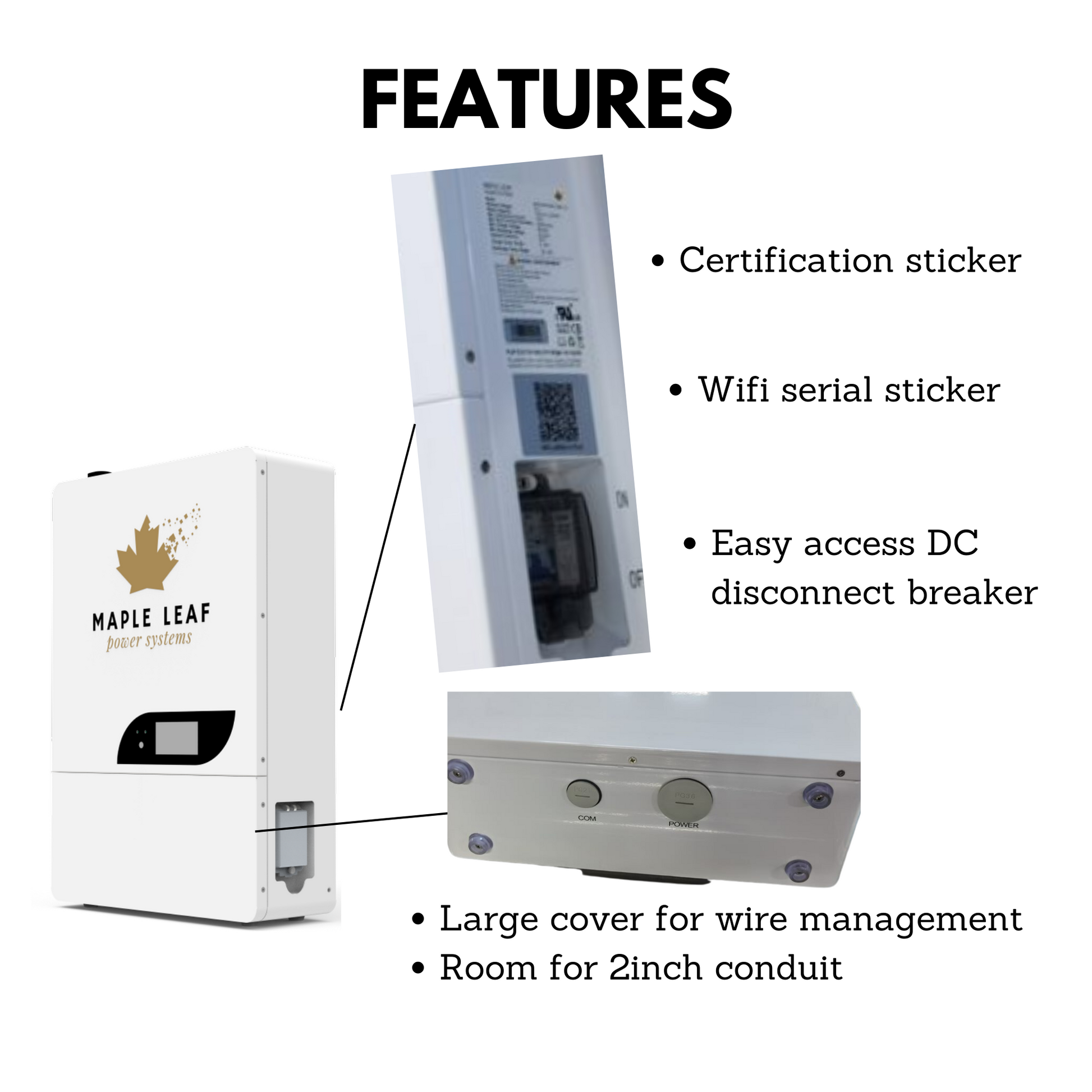

Detachable cover, user serviceable BMS and cells
10- Year extended warranty included with every purchase (

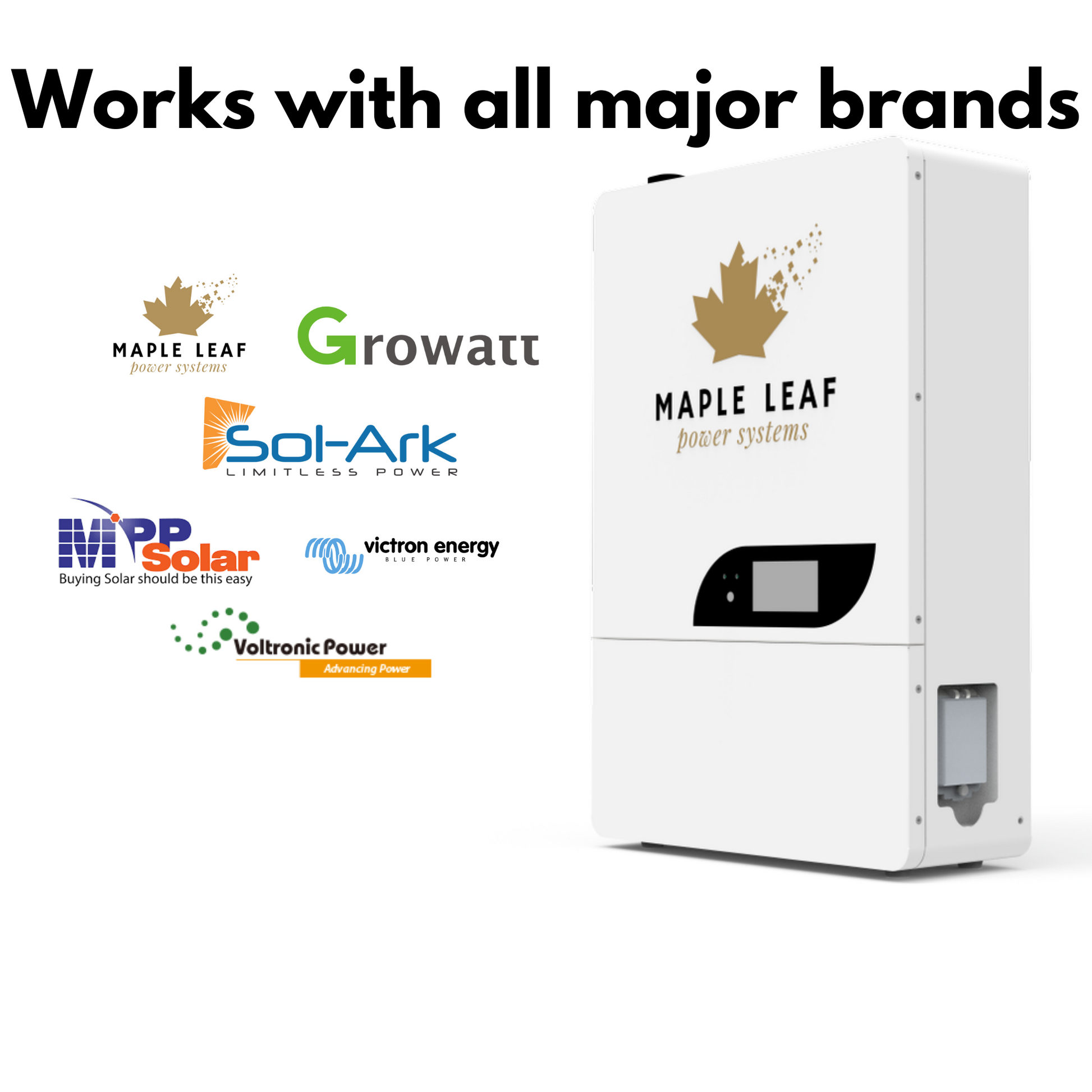

RS485 & CANBus communication, works with many inverters.
