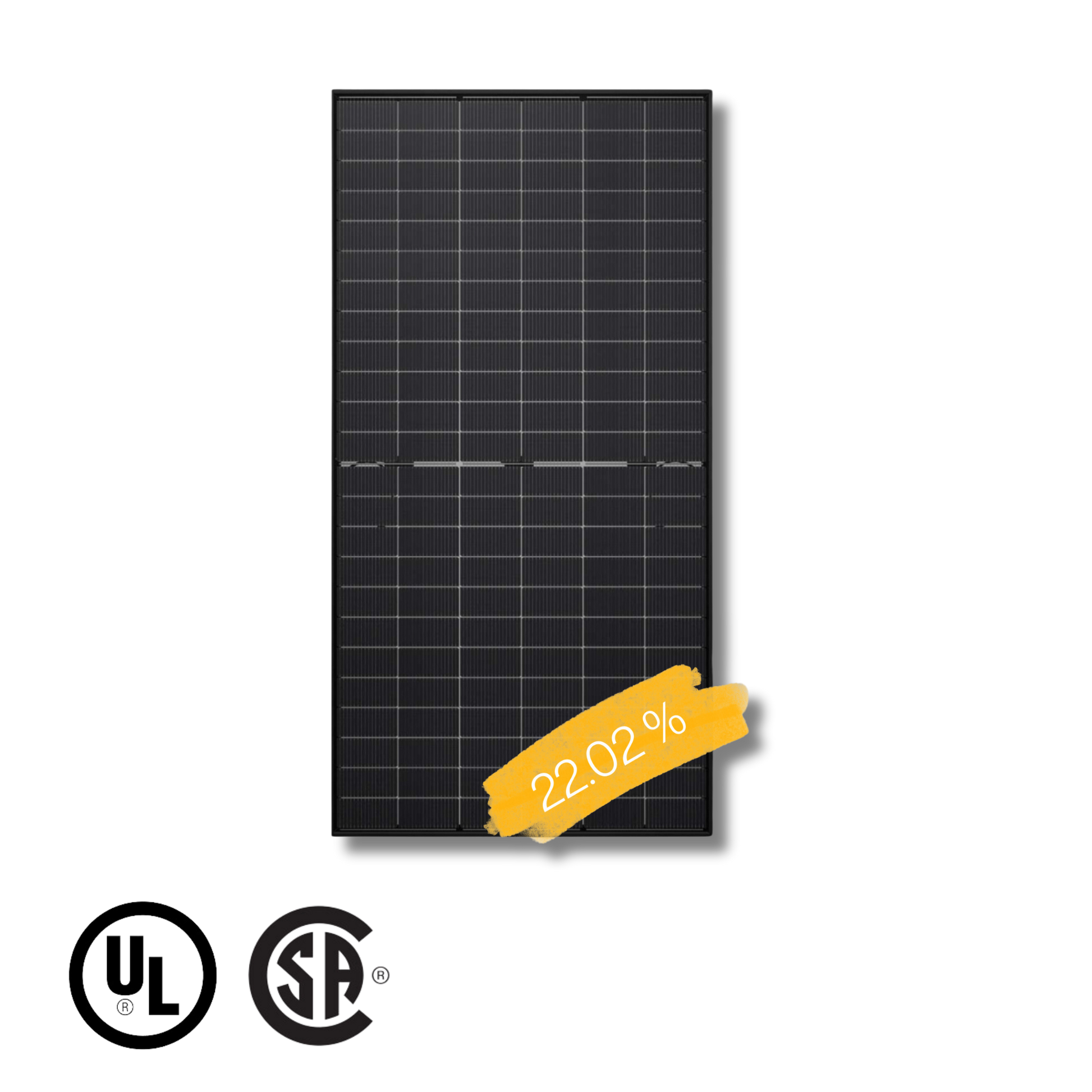

Maple Leaf All Black Bifacial Solar Panel 570W- W/ N-type Mono Cells- IP68 Junction Box And IP67 MC4 Cable- 25 Years Warranty

Maple Leaf All Black Bifacial Solar Panel 570W- W/ N-type Mono Cells- IP68 Junction Box And IP67 MC4 Cable- 25 Years Warranty

Maple Leaf Solar's 570W All-Black Bifacial Solar Panel redefines solar efficiency, providing 10-30% more power over its 30-year lifespan compared to conventional P-type modules. Featuring N-type solar cells with zero Light Induced Degradation (LID), it naturally increases power generation. Adopting SunEvo's S-TOPCo 2.0 technology ensures higher reliability, full electrical isolation, and zero leakage current, enhancing safety. With superior performance in low-light conditions, cloudy or foggy days, and an improved temperature coefficient, this panel guarantees optimal power output, making it a reliable choice for sustainable energy solutions.

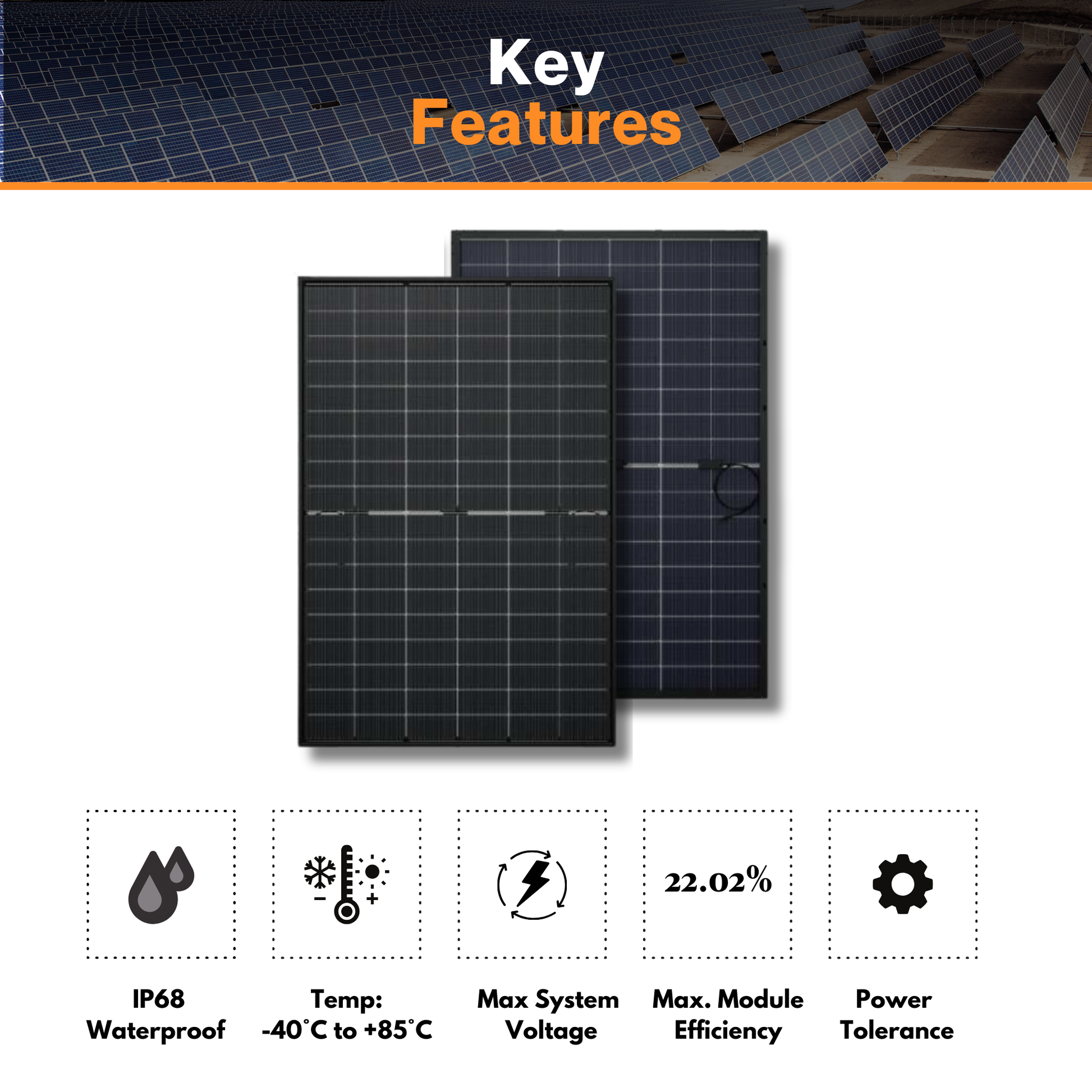

Key Features:

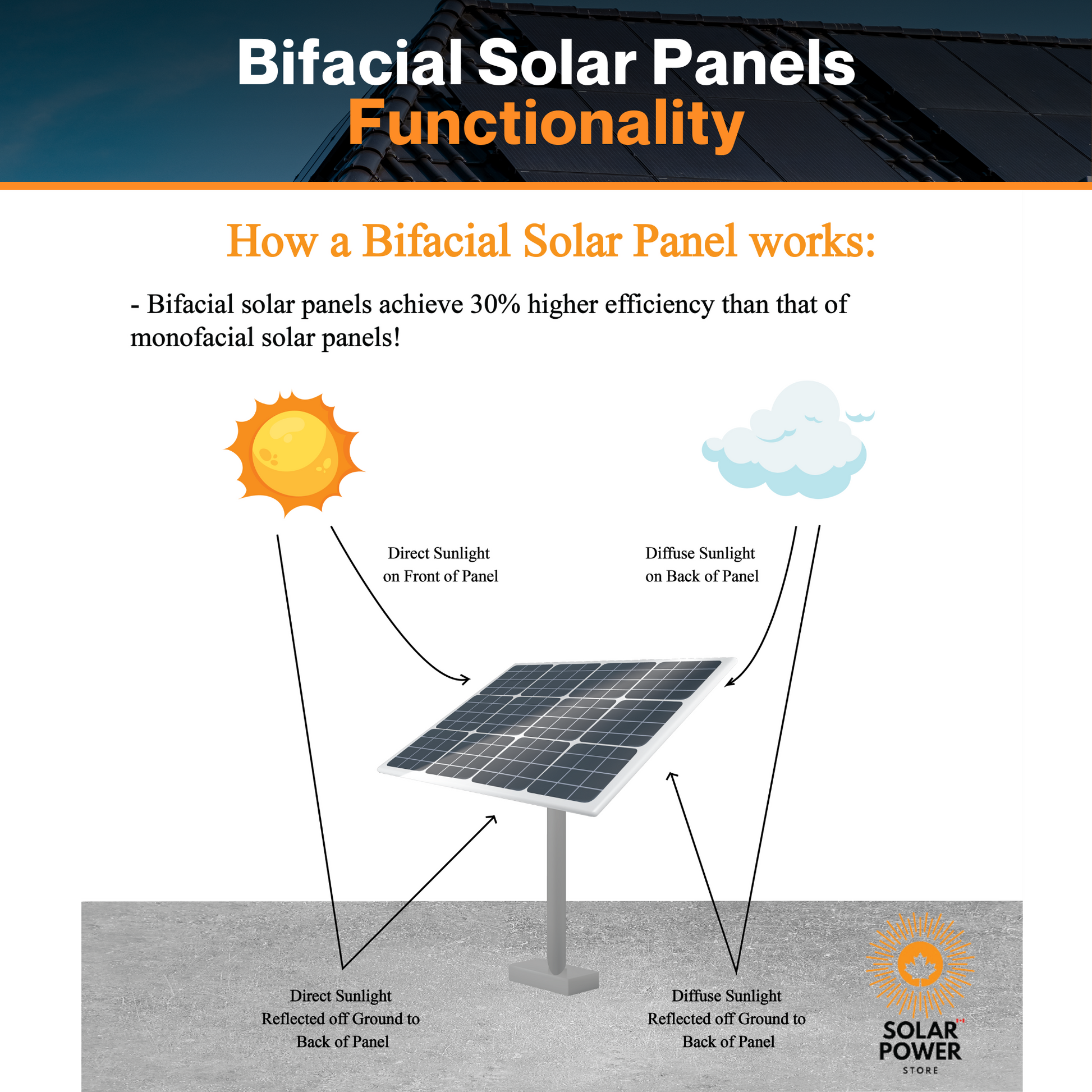

  • Outstanding Bifacial Energy Production: Maple Leaf Solar's 570W All-Black Bifacial Solar Panel distinguishes itself with an exceptional capacity to capture sunlight from both sides, delivering a surplus of 30% more energy compared to conventional solar panels.
  • Innovative Shade Solutions: The configuration of the panel integrates state-of-the-art technologies, incorporating PERC, half-cut cell, bypass diodes, and 10 busbar technologies, guaranteeing optimal energy output even in partially shaded situations while providing protection against overheating.
  • Effective Snow Performance: The dual-sided design expedites snow shedding and panel warming, ensuring continuous solar power throughout snowy time. The constant availability of the rear side makes it a preferred option for off-grid applications.

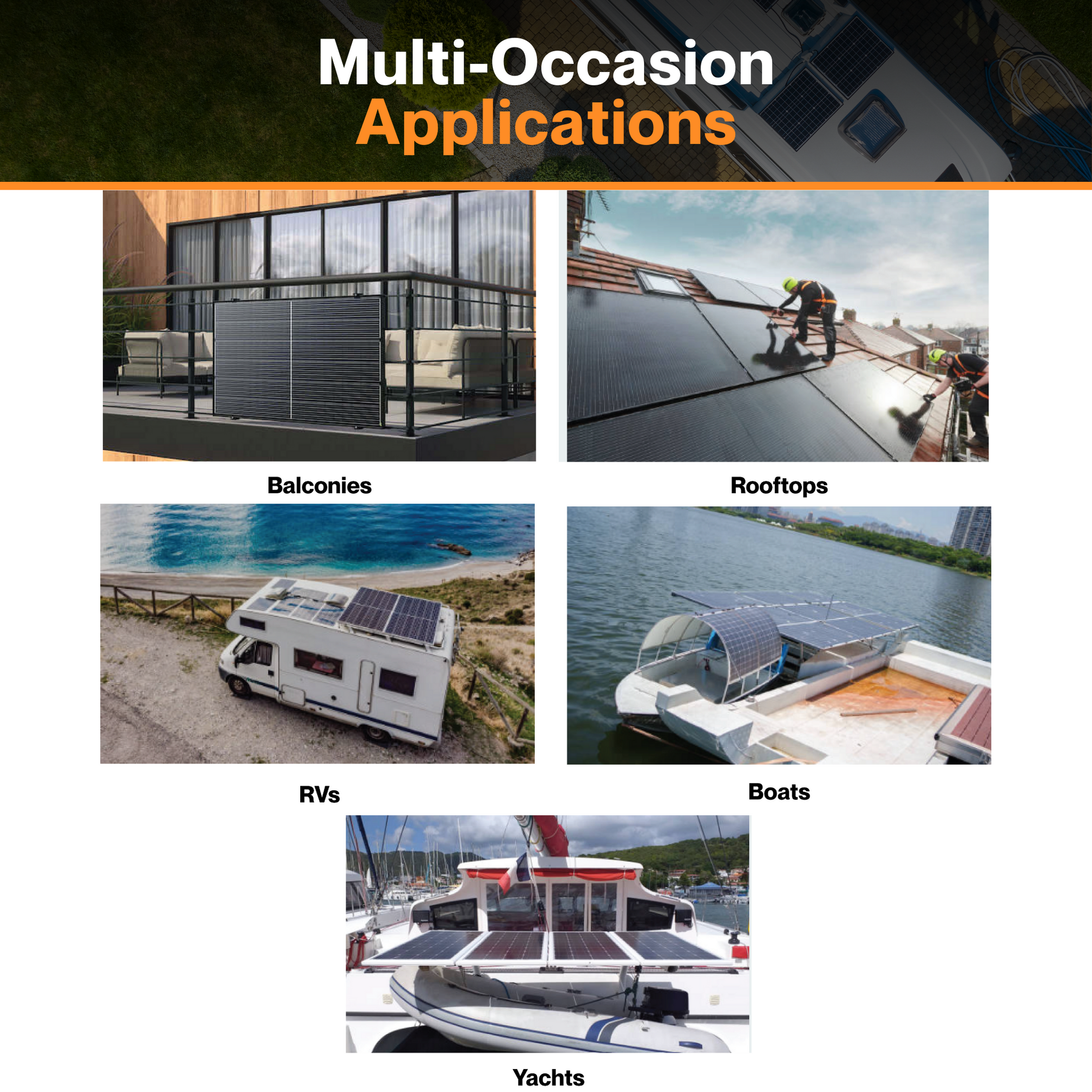

  • Prompt and Convenient Installation: Equipped with pre-drilled holes at the rear, this solar panel facilitates swift and straightforward mounting, making it well-suited for diverse off-grid applications like RVs, roofs, lodges, yachts, and sunrooms. Compatibility with Maple Leaf's mounting brackets amplifies installation efficiency.

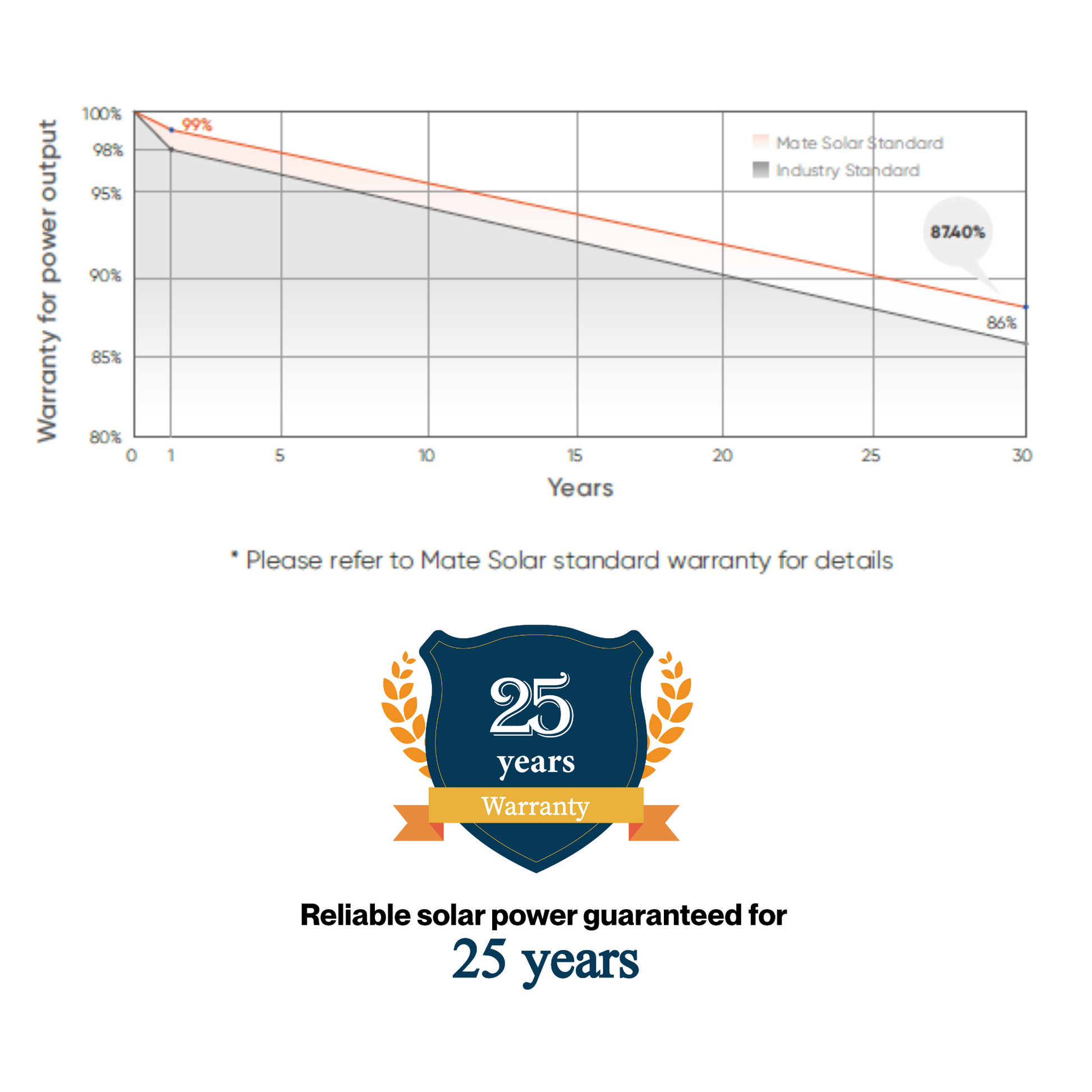

  • Robust and Enduring Structure: : Constructed to endure demanding environments, the panel features a robust junction box with an IP68 rating, capable of withstanding wind loads of up to 2400Pa/0.35 PSI and snow loads reaching 5400Pa/0.75 PSI. This panel comes with a fortified 25-year warranty for Materials and Processing and an extended 30-year warranty for Additional Linear Power Output, ensuring a steadfast and lasting investment for your energy requirements.
  • No Light Induced Degradation (LID): N-type solar cells inherently eradicate LID, assuring continuous and heightened power generation over the panel's three-decade lifespan.
  • Cutting-Edge Technological Advancements: The integration of SunEvo's latest S-TOPCo 2.0 technology, coupled with attributes like the absence of polysilicon wrapping, complete electrical isolation, and absence of leakage current, augments reliability and safety, establishing it as a secure option for rooftop installations.

Product Specification:

  • Solar Cells: N-type Mono
  • No. of Cells: 144 (6×24)

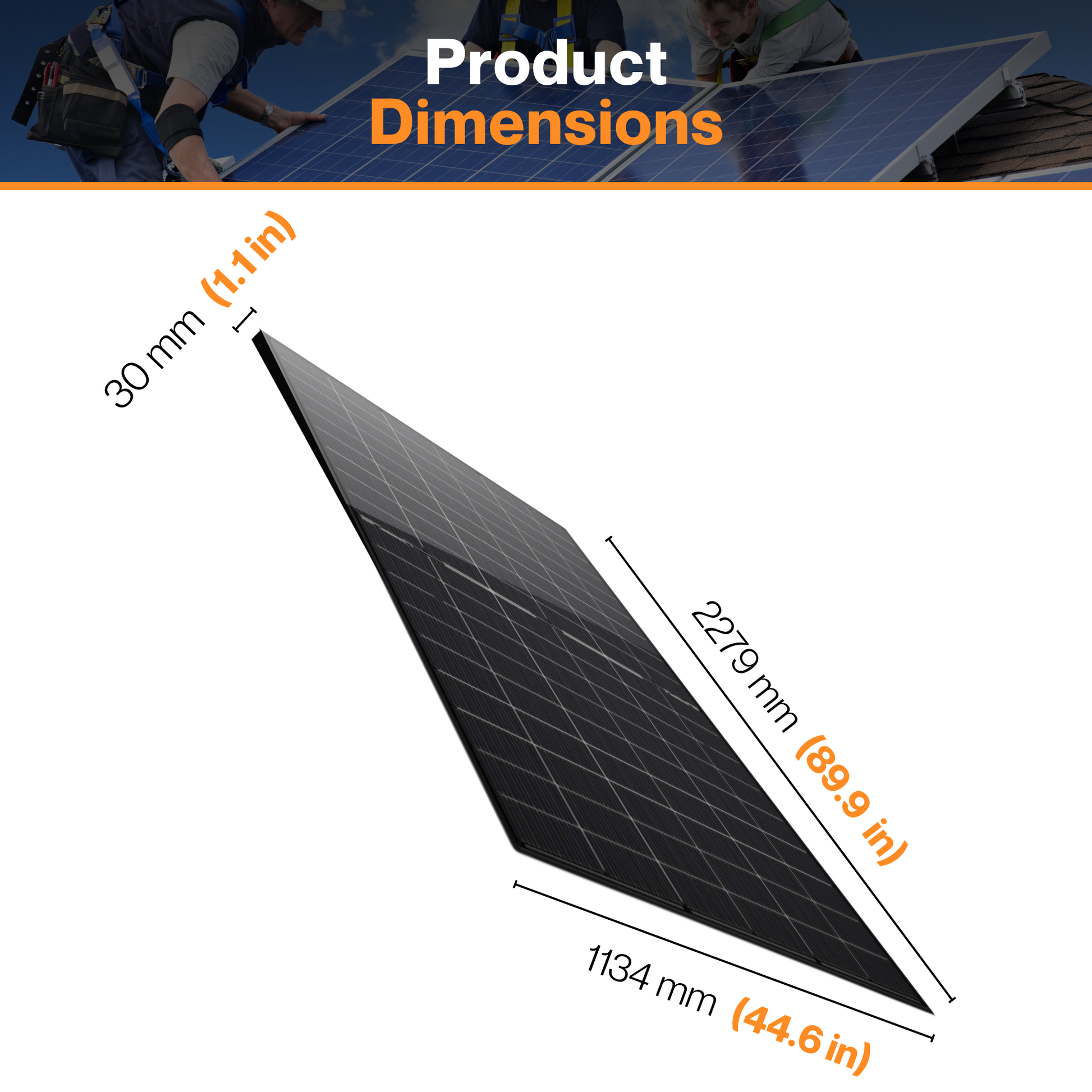

  • Dimensions: 2279 x 1134 x 30mm
  • Weight:31.5kg
  • Glass: Front: 2.0mm coated semi-tempered glass; Back: 2.0mm semi-tempered glass
  • Frame: Anodized aluminum alloy
  • Junction Box: Ip68 rated (3 by pass diodes)
  • Output Cables: 4mm2, 300mm (+) / 300mm (-), Length can be customized
  • Connectors: Mc4 compatible
  • Mechanical load test: 5400Pa
  • Packaging: 36pcs/box, 180pcs/20'GP, 720pcs/40'HQ
