Maple Leaf North Pole Mount [Pole Mount System For 8 Solar Panels]- 14 Feet Height - W/ Angle Adjustment- PENG Certificate [Fits Panels Up To 550w In Size]

Elevate your solar energy game with the Maple Leaf North Pole Mount [8 Panel Seasonal Adjustable Mount]. Specifically engineered for the Canadian climate, it proudly holds Peng certification and is engineered to endure winds of up to 22m/h. Standing at an impressive 14-feet height, it rises above any tree cover, optimizing sunlight exposure. With the ability to support 550W solar panels measuring up to 8 feet in length, it minimizes ground space usage. Explore custom engineering options for boosting wind resistance and enhance your energy solution for top-notch efficiency in Canada.

Key Features:

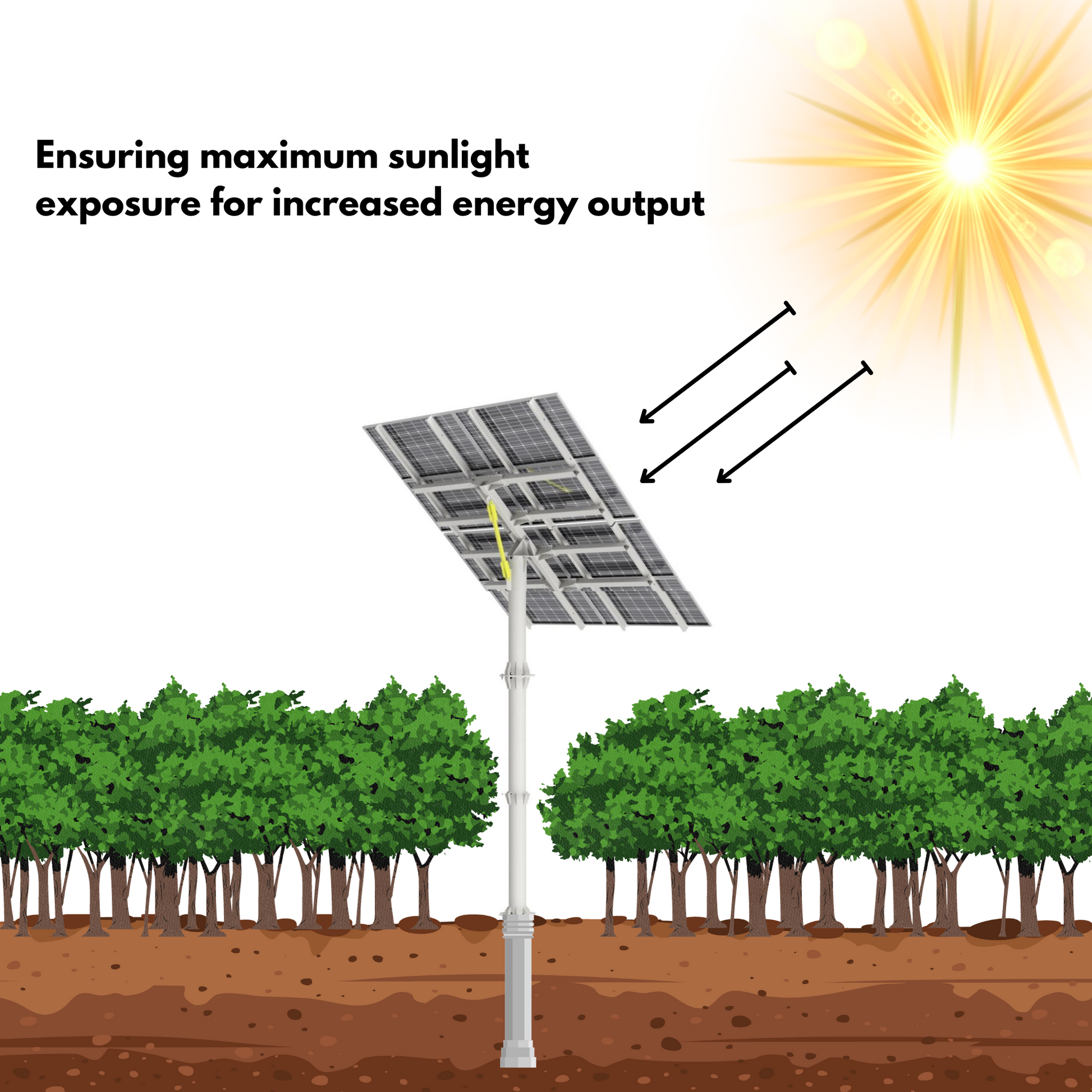

• Adaptable Panel Angle Control: Our mount offers effortless angle adjustments, allowing you to fine-tune your solar panels at 30-45-60 degrees to match your preferences, ensuring maximum sunlight exposure for increased energy output.

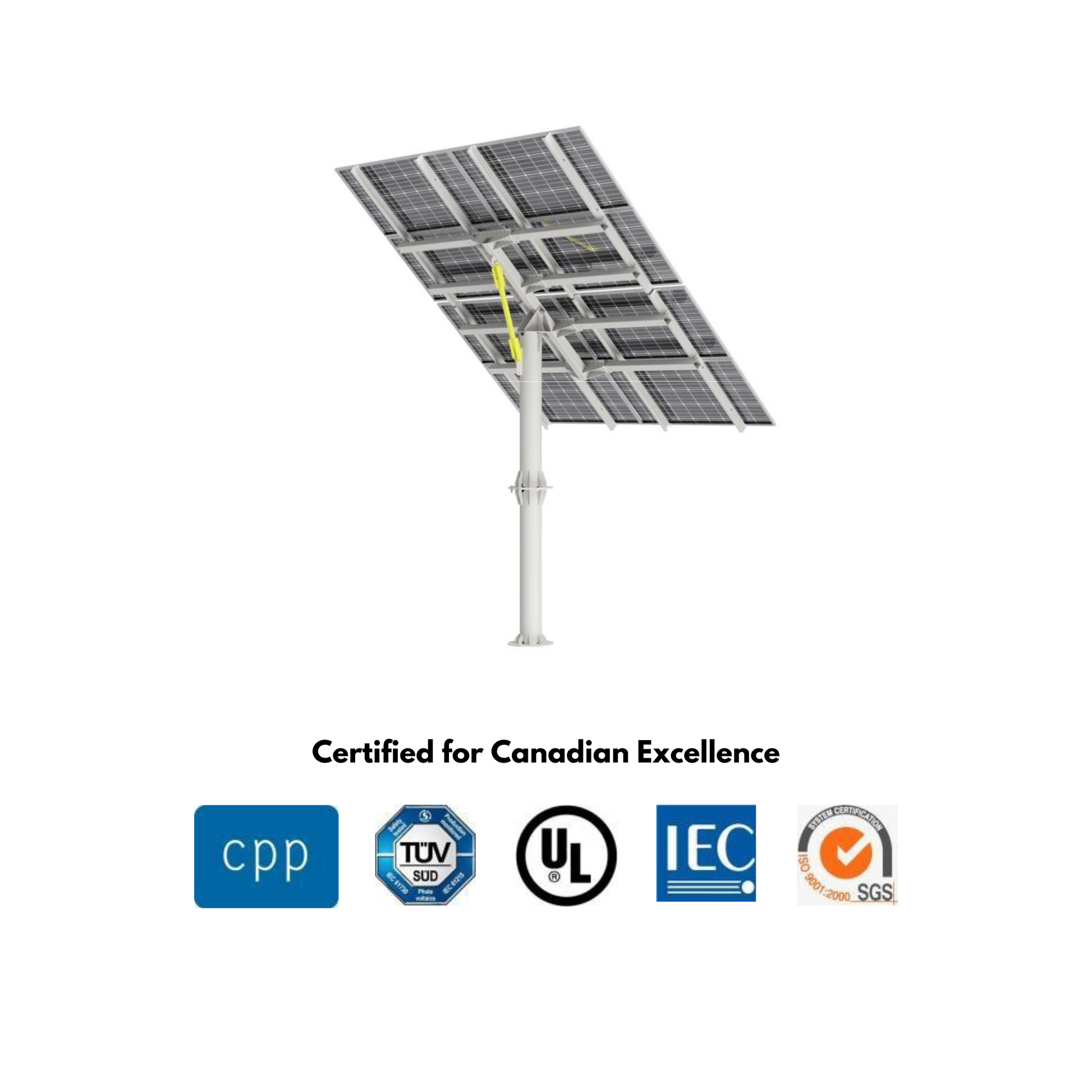

• Certified for Canadian Excellence: We take pride in our Peng certification, assuring Canadian users of top-quality and tailored performance.
• Exceptional Wind Endurance: Designed to withstand wind loads of up to 22m/h, our mount guarantees stability even in challenging weather conditions.

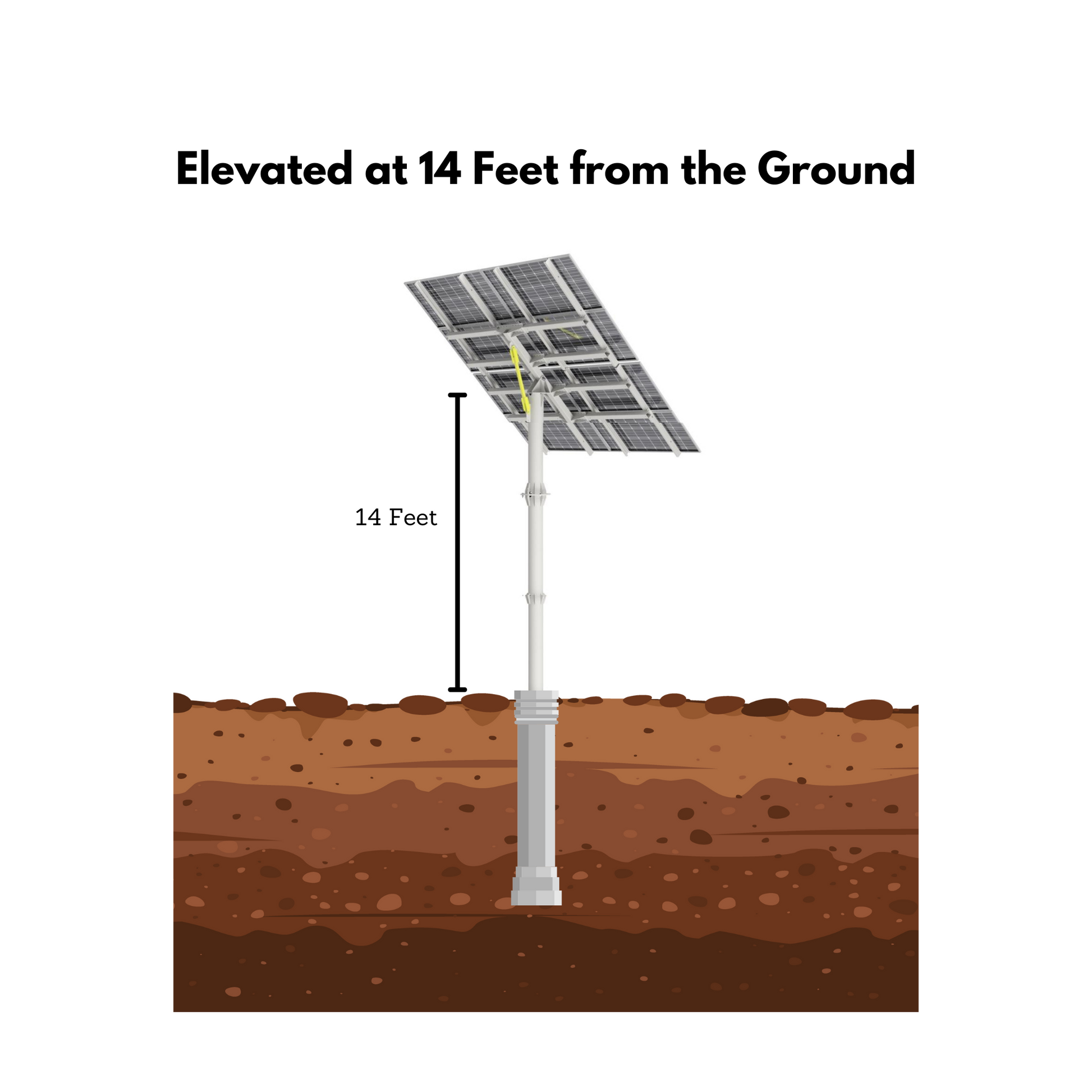

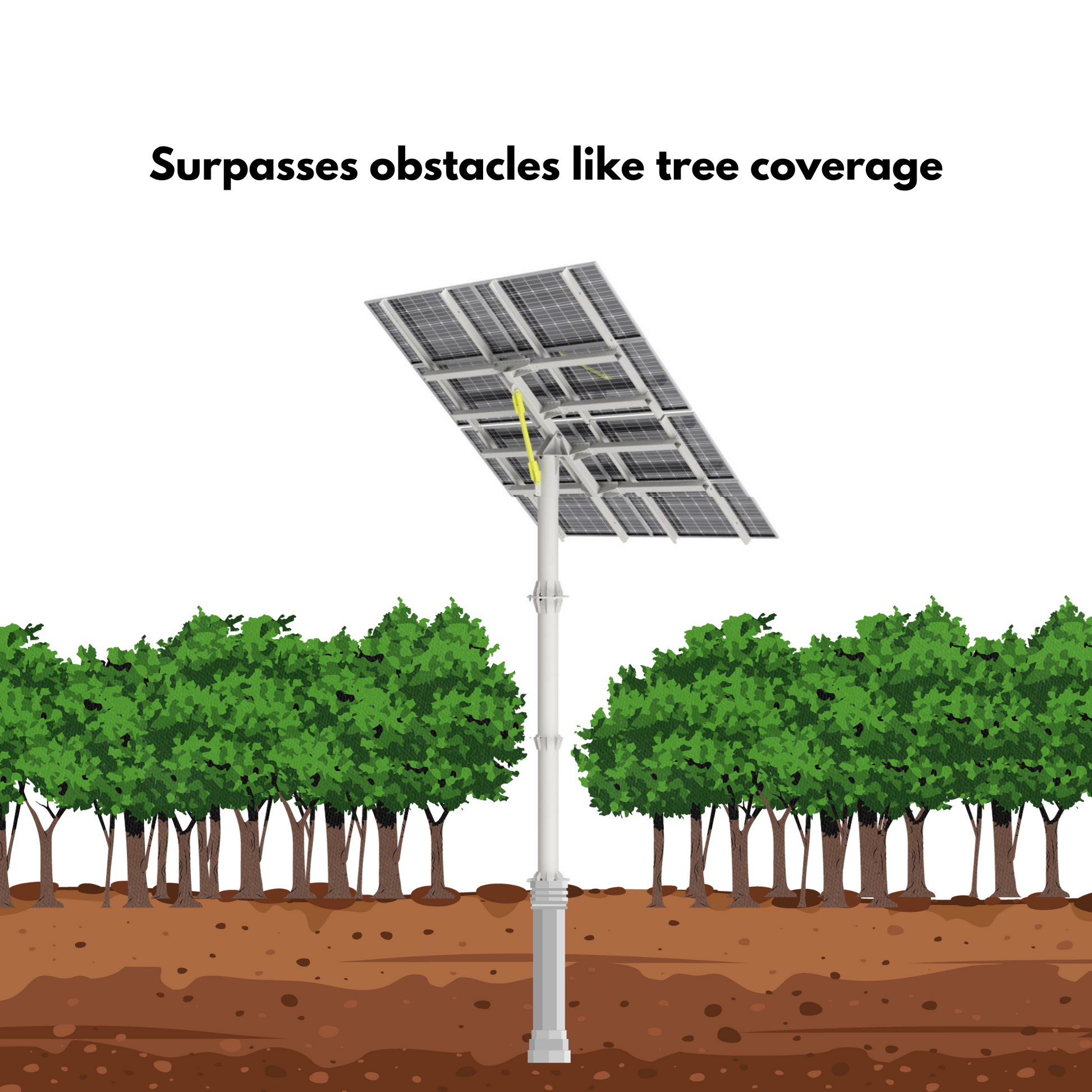

• Elevated at 14 Feet: Reaching a towering height of 14 feet, it surpasses obstacles like tree coverage, ensuring uninterrupted access to sunlight and improved energy production.
• Accommodating 300-550W Solar Panels: Our mount seamlessly fits up to 550W solar panels of up to 8ft in length, catering to a wide range of energy needs
• Space-Efficient Design: With its impressive height, our mount optimizes ground space utilization, making it a smart choice for areas with limited space.
• Customizable Engineering Solutions: Tailor your mount with custom engineering options for enhanced wind resistance, adding an extra layer of durability.

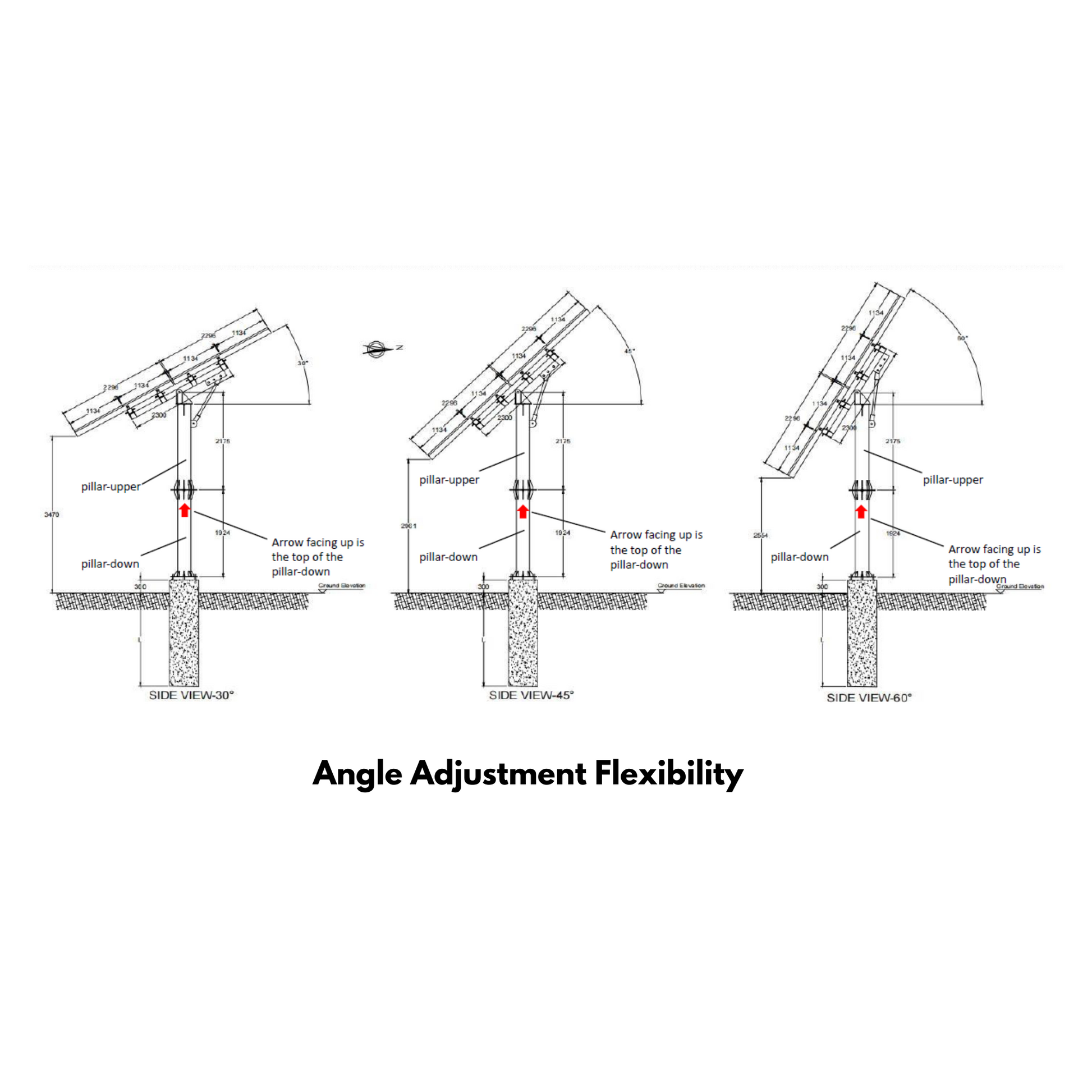

• Angle Adjustment Flexibility: Easily customize your panel angle to match your specific requirements, enhancing solar exposure and energy generation for improved performance.

Product Specification

• Dimension(L*W*H)mm/in: 2285*1134*35 mm/ 89.96*44.64*1.377 in
• Weight: 343.82 kg (758.0 Lb)
• String: 8
• Max Panel Size Compability: 2278mm x 1134mm x 35mm
• 1/50 Hourly Wind Pressure: 0.33 kPa
• 1/50 Ground Snow Load: 2.7 kPa
• 1/50 Associated Rain Load: 0.4 kPa
• Solar Array Tilt: 30°, 45°, 60°
• Array height at column: 13’-5”
• Certification: UL ,CSA under TUV
• Warranty: 25 years
