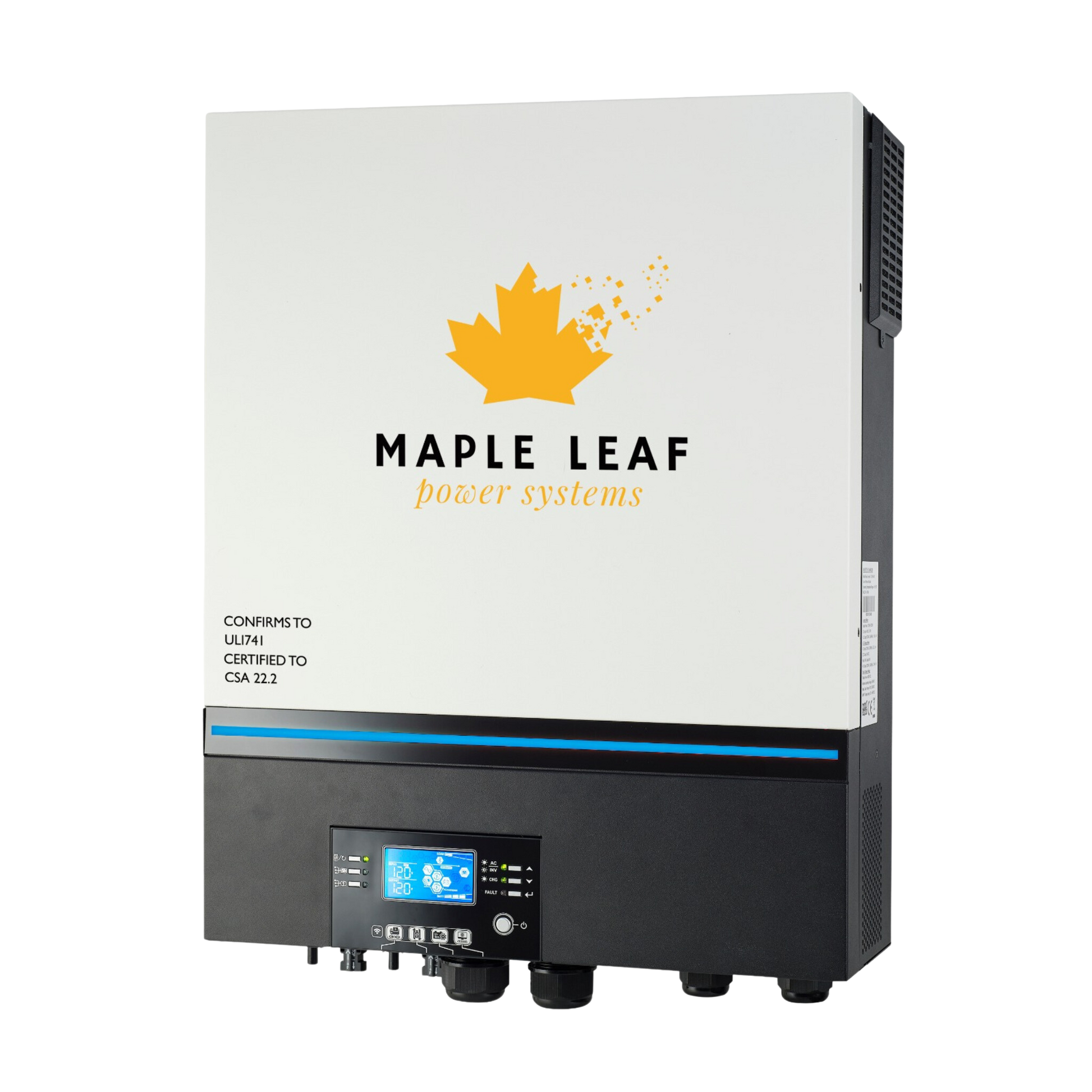

Maple Leaf 6500EX-48 Off Grid Solar Inverter - 500 VOC - 48v 110vac | (2 Units For 220vac ) Dual MPPT Solar Charger 120A [CSA Approved]

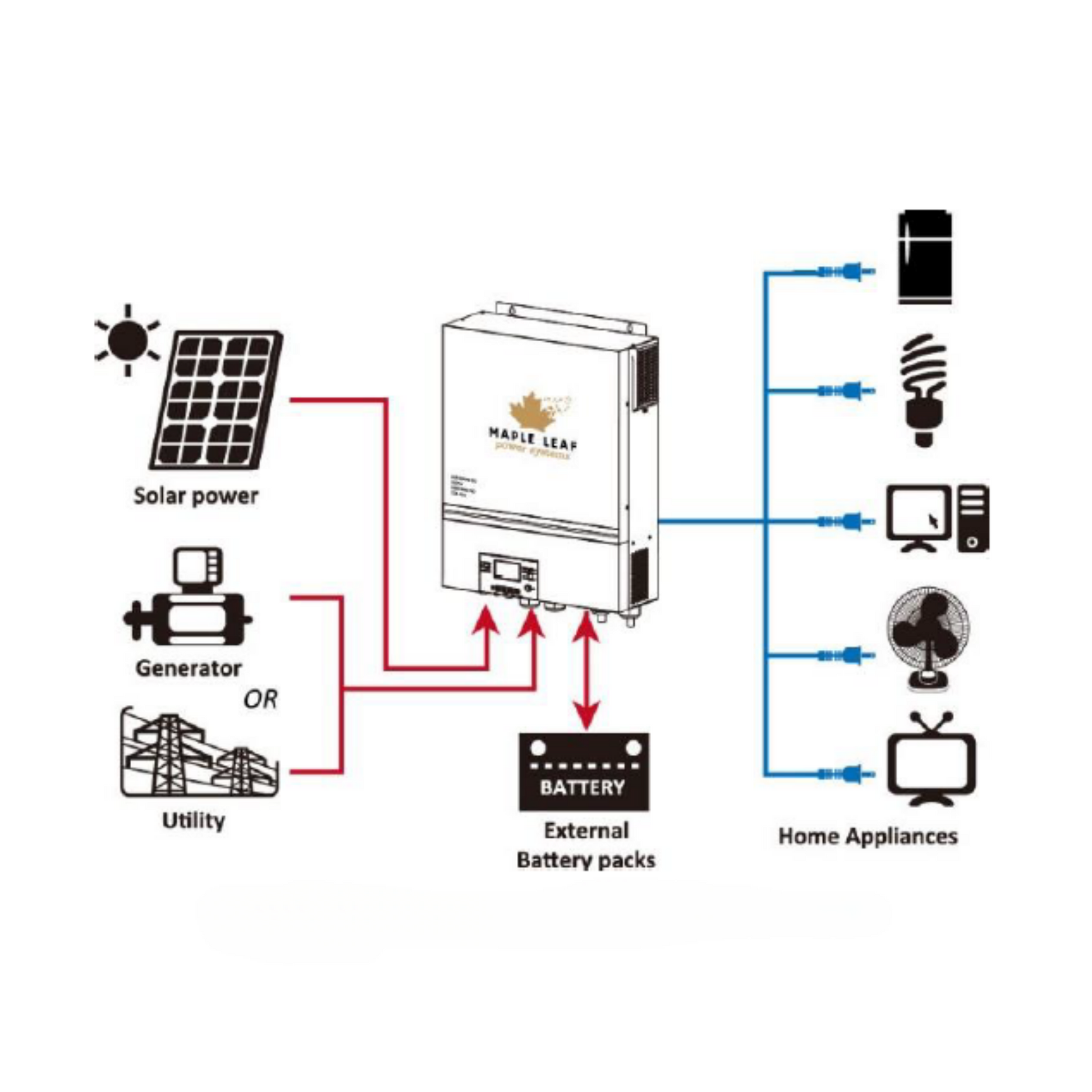

The 6500EX-48 is the easiest way to get started on your next off-grid projects. With the only all-in-one, CSA-certified inverter. The 6500EX-48 will Act as your main hub for all your off-grid needs. Simply plug your inputs, batteries, and optional AC inputs (i.e. the grid or a generator) and get your off-grid on baby!

Features:

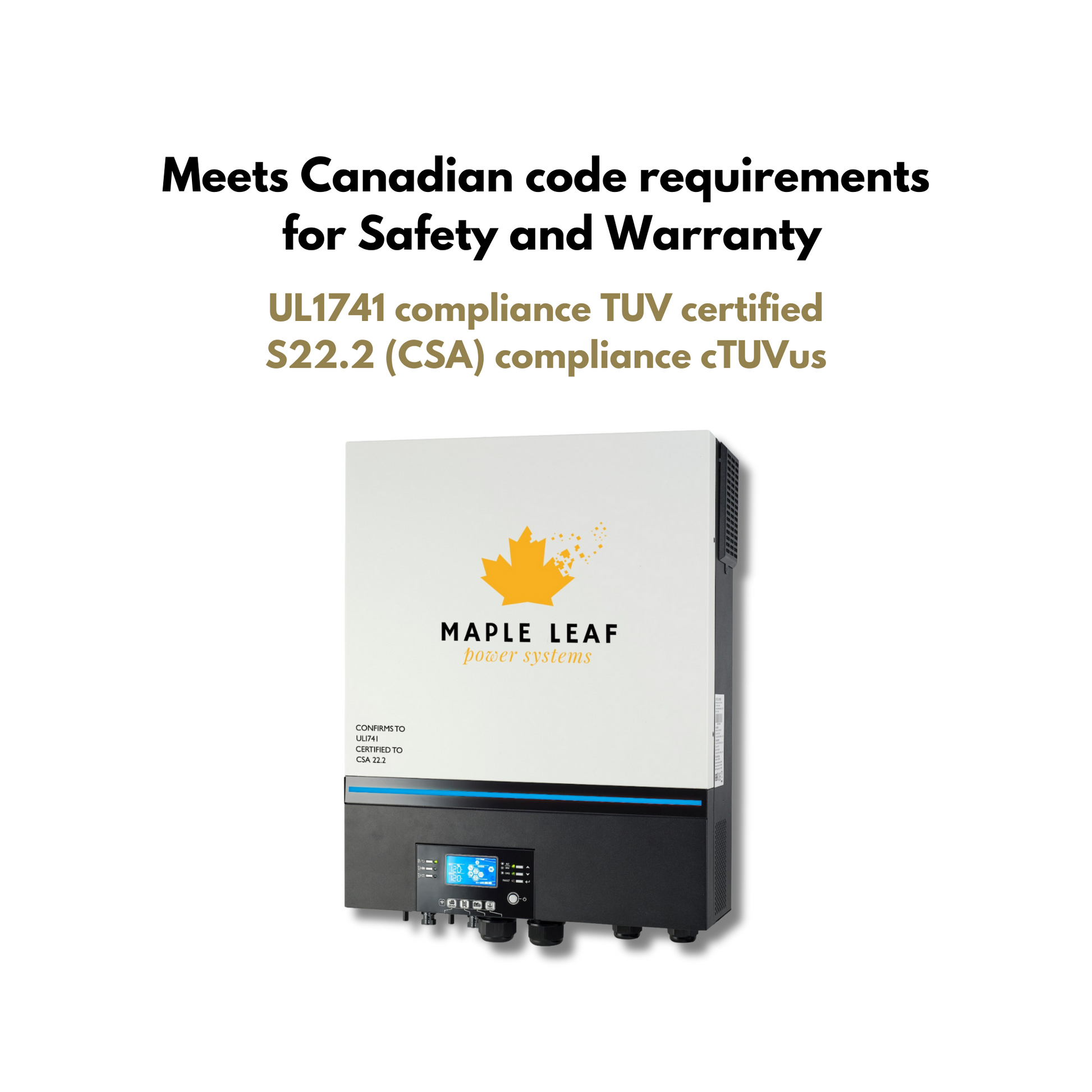

UL1741 compliance TUV certified
CS22.2 (CSA) compliance cTUVus

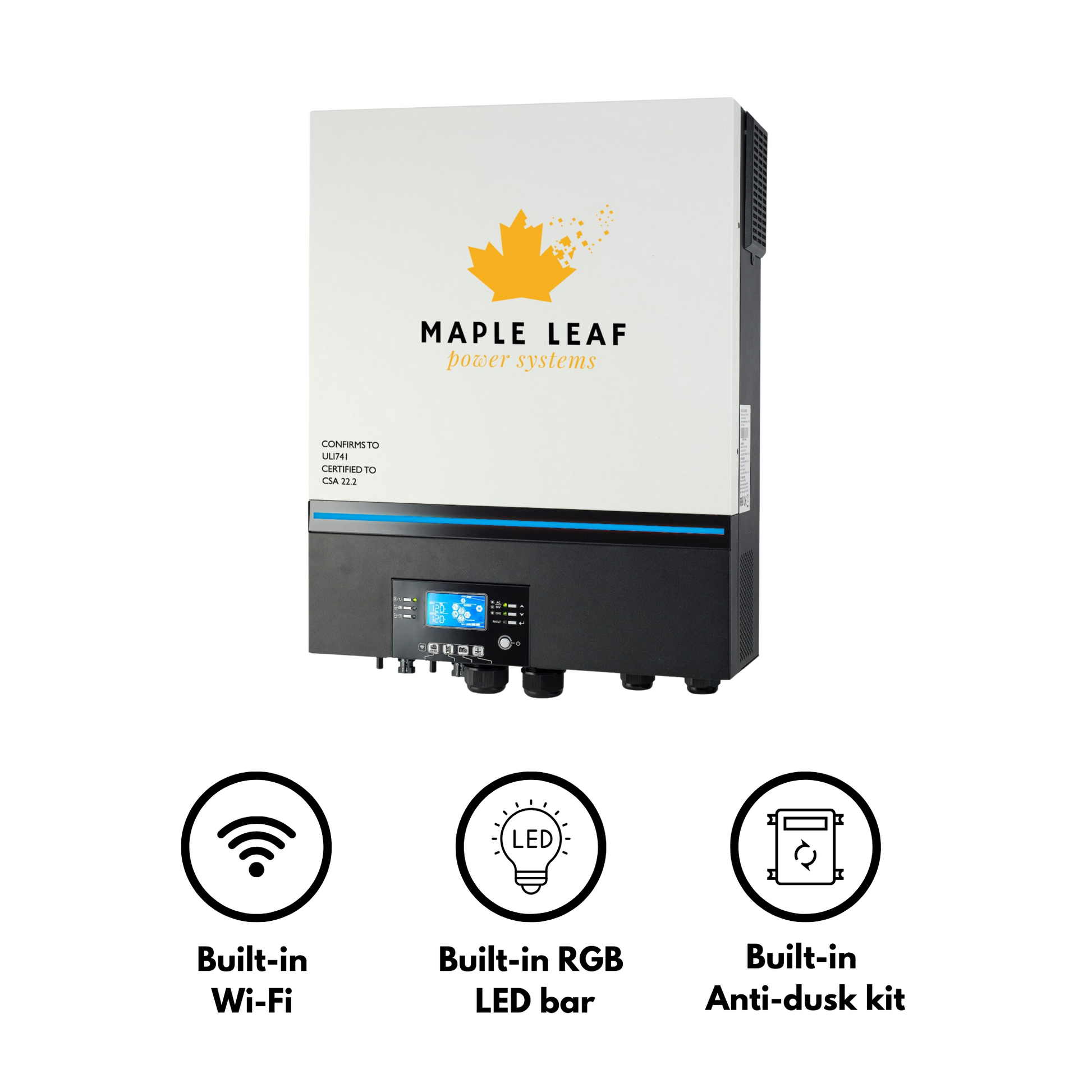

Customizable RGB LED setting to display operation mode
High PV input up to 500V (VOC)
Max 6.5KW / 48V pure sine wave output 120V
Parallel support up to 6 units, in single-phase (120V), split-phase (120V/240V/208V), or 3-phase (208V).
Built-in parallel kit
Battery less operation (single unit mode only)
Built-in WIFI transmitter to monitor data on smartphones
Timer control on AC output & charging
Built-in genset starter dry contact
Equalization Charge
Detachable LCD remote display
Built-in MPPT solar charger max 120A
Built-in utility battery charger max 120A
Comprehensive programming options
Adjustable Bulk/Float charging voltage
Indoor installation only
Wide AC input range for bypass
FREE monitoring software

Product Specification

Safety Certification: UL
Operating Temperature Range: -10ºC to 50ºC
Storage Temperature: -15ºC~60ºC
Humidity: 5% to 95% Relative Humidity (Non-condensing)

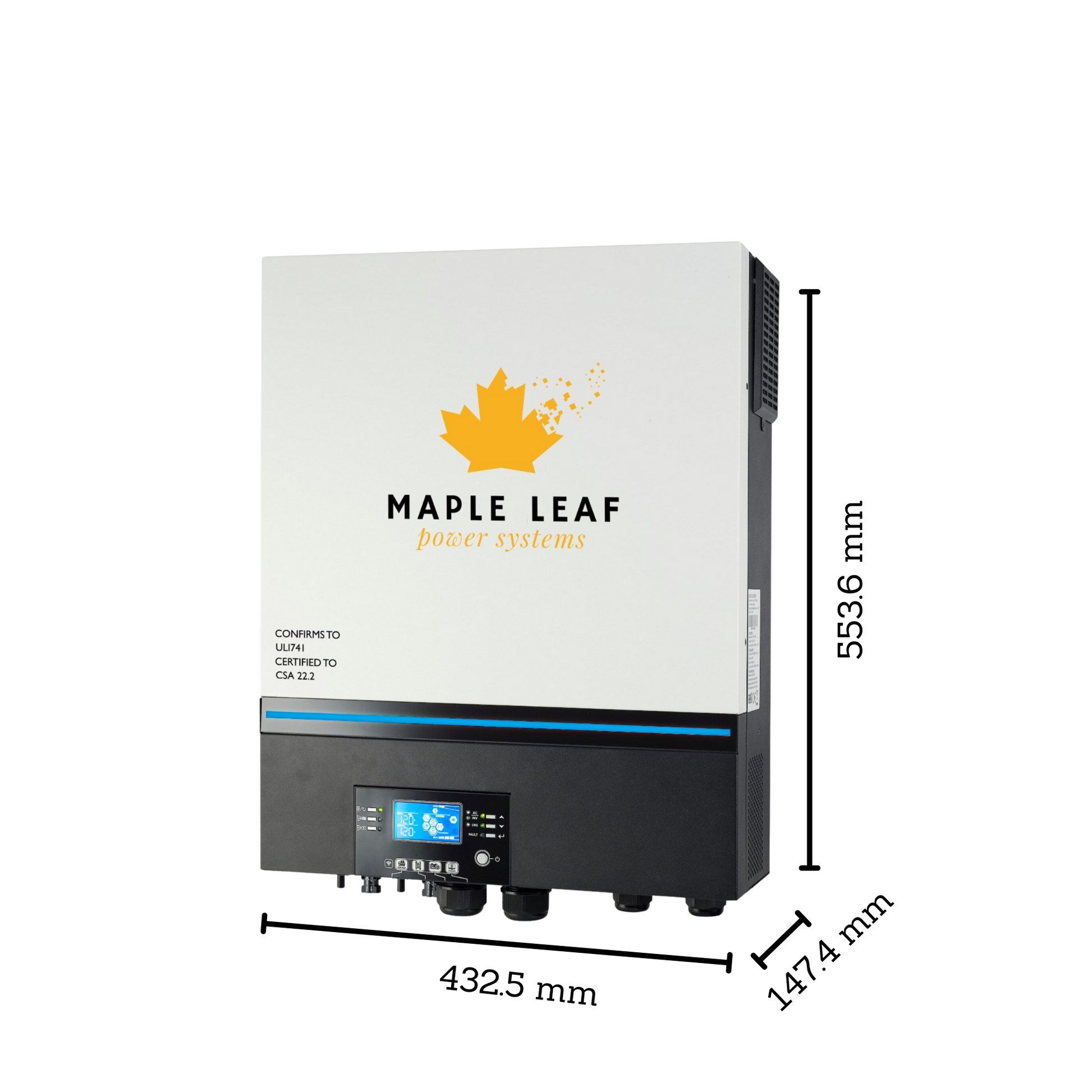

Dimension(D*W*H)mm: 147.4*432.5*553.6mm
Net Weight(Kg): 18.4Kg
