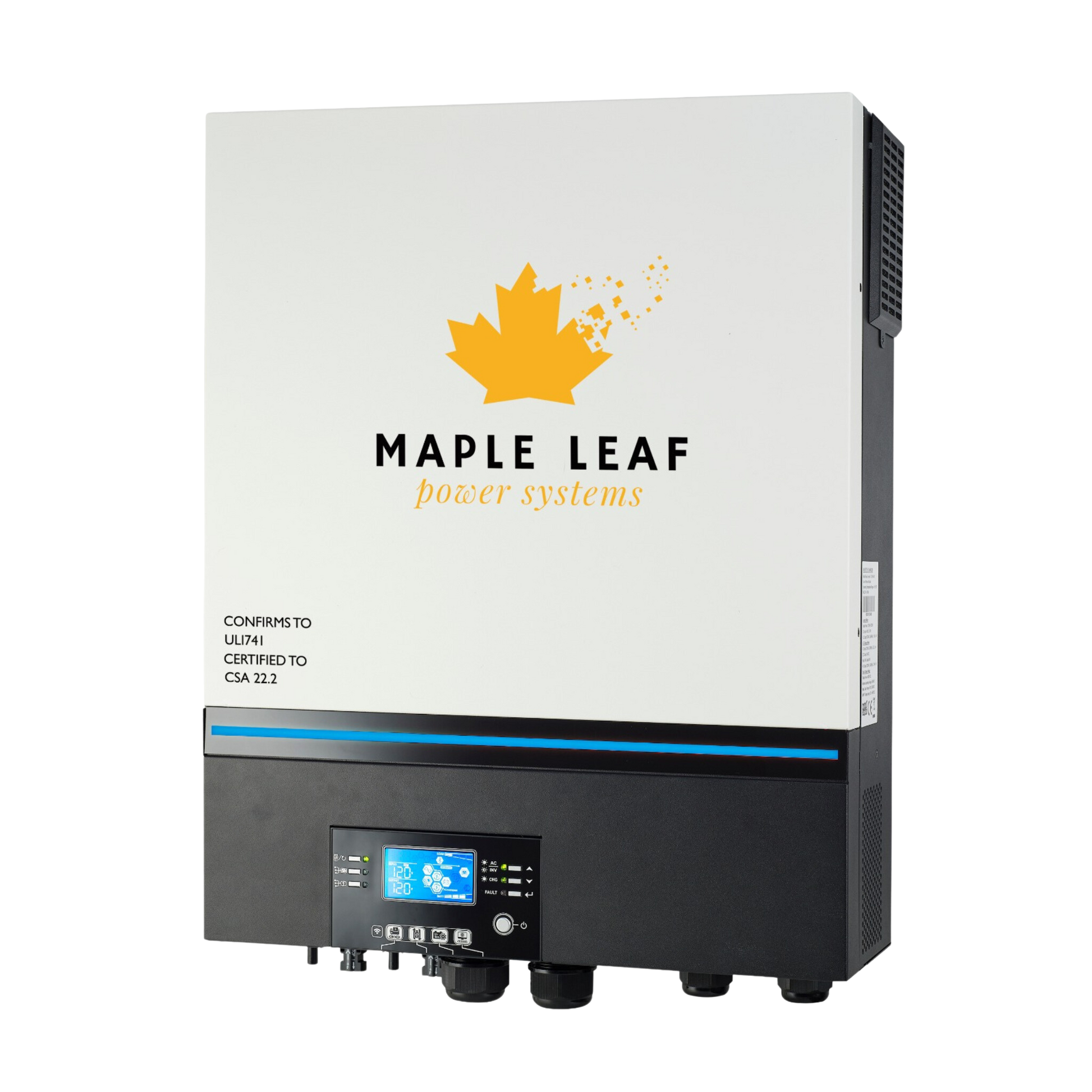

Maple Leaf 6500EX-48 Off Grid Solar Inverter 250 VDC - 48v 110vac / (2 Units For 220vac) Dual MPPT Solar Charger 120A [CSA Approved]

Maple Leaf 6500EX-48 Off Grid Solar Inverter 250 VDC - 48v 110vac / (2 Units For 220vac) Dual MPPT Solar Charger 120A [CSA Approved]

Description:

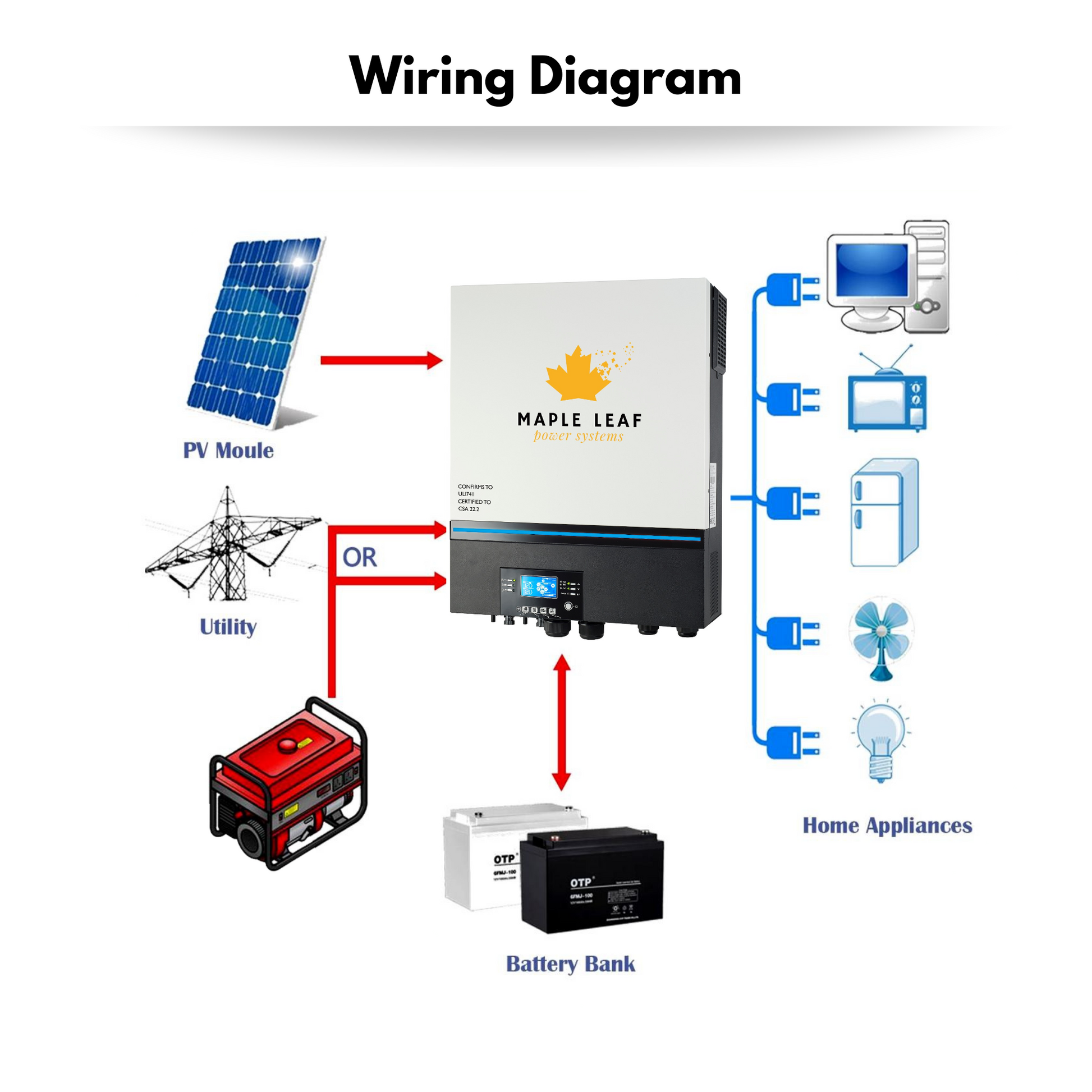

The 6500EX-48 is the easiest way to get started on your next off-grid projects. With the only all-in-one, CSA-certified inverter. The 6500EX-48 will Act as your main hub for all your off-grid needs. Simply plug your inputs, batteries, and optional AC inputs (i.e. the grid or a generator) and get your off-grid on baby!

Features:

  • UL1741 compliance TUV certified
  • CS22.2 (CSA) compliance cTUVus
  • Customizable RGB LED setting to display operation mode
  • High PV input up to 250V (Voc)
  • Max 6.5KW / 48V pure sine wave output 120V

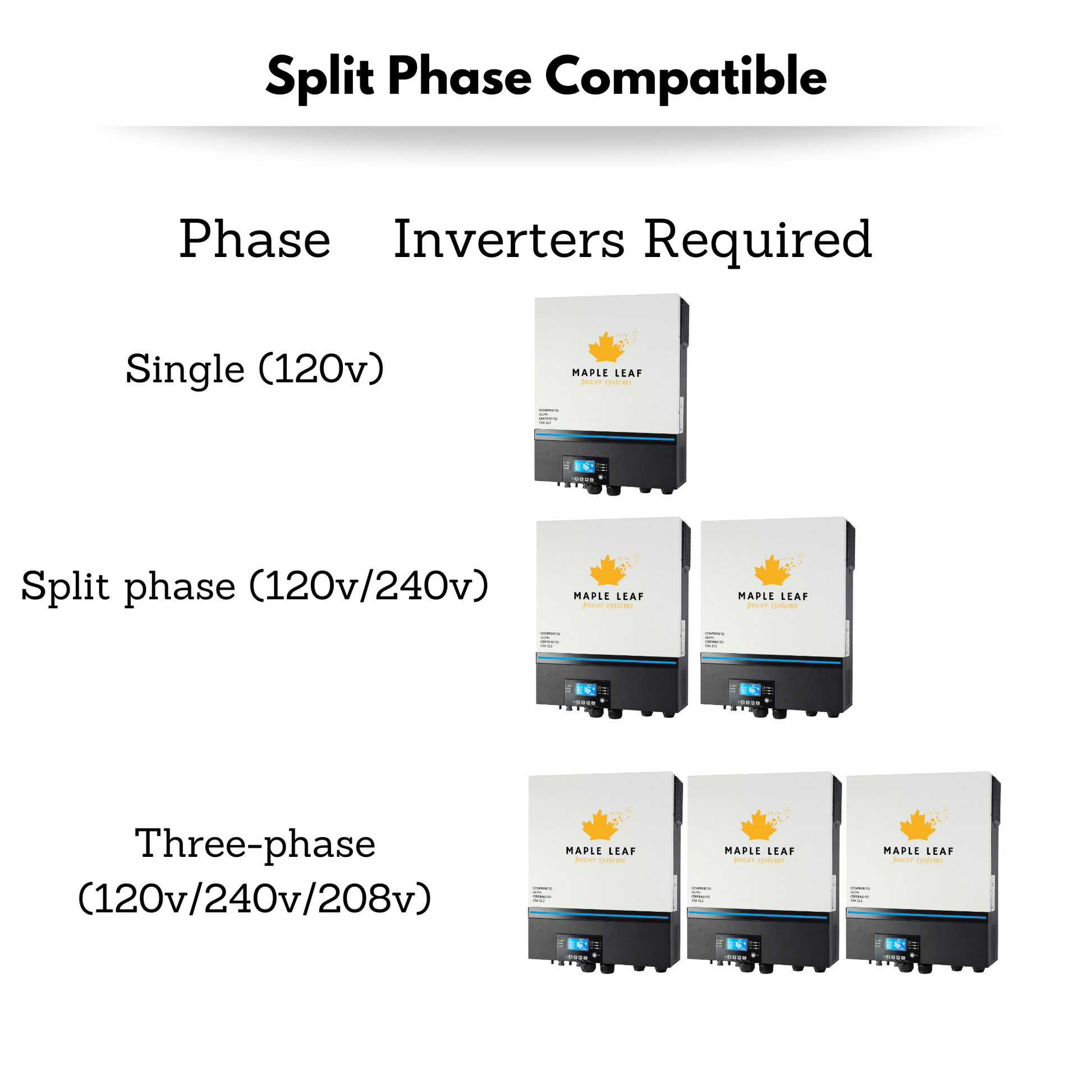

  • Parallel support up to 6 units, in single-phase (120V), split-phase (120V/240V/208V), or 3-phase (208V).
  • Built-in parallel kit
  • Battery less operation (single unit mode only)
  • Built-in WIFI transmitter to monitor data on smartphones
  • Timer control on AC output & charging
  • Built-in genset starter dry contact
  • Equalization Charge
  • Detachable LCD remote display
  • Built-in MPPT solar charger max 120A
  • Built-in utility battery charger max 120A
  • Comprehensive programming options
  • Adjustable Bulk/Float charging voltage
  • Indoor installation only
  • Wide AC input range for bypass
  • FREE monitoring software

MANUAL
TUV/CSA Certificate
