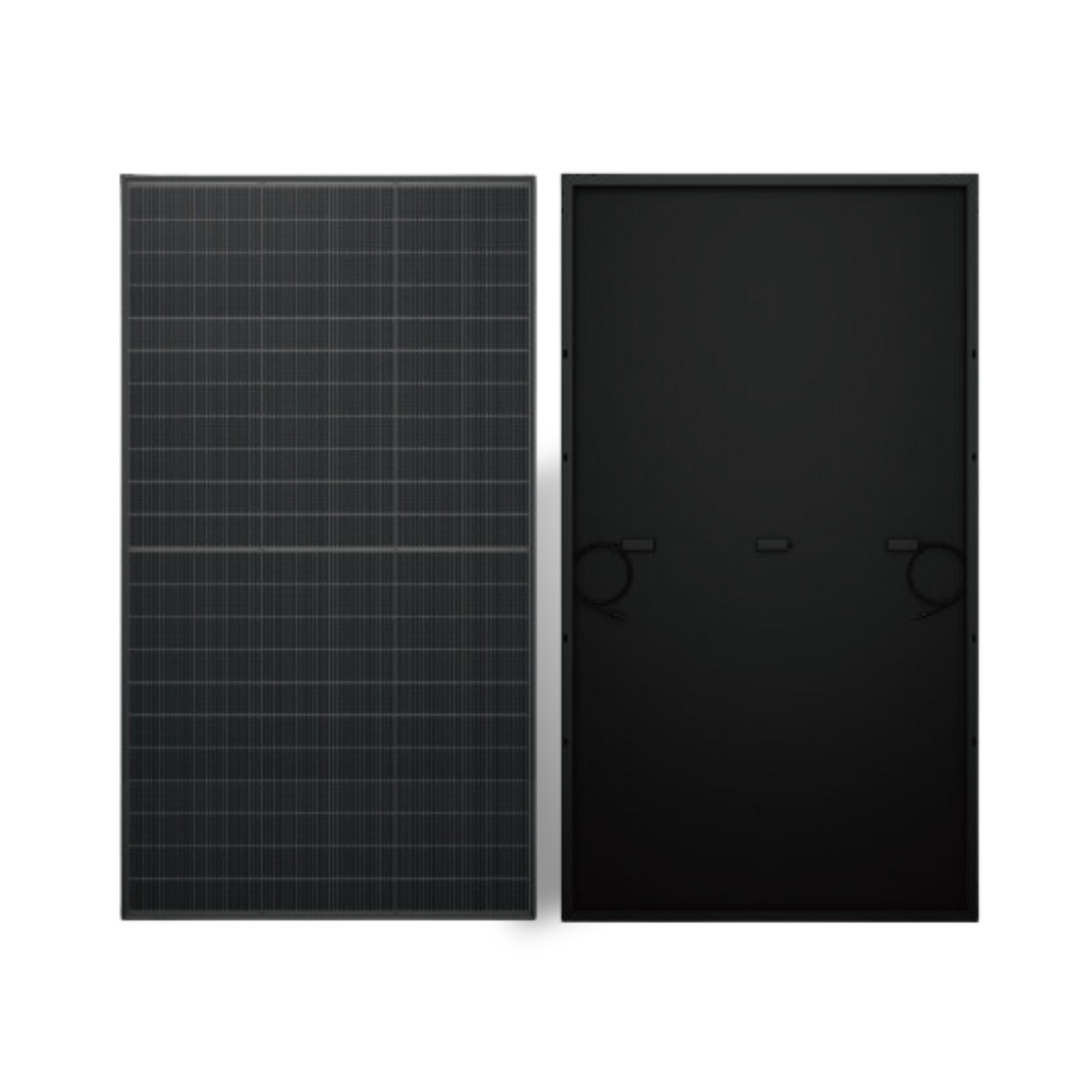

Maple Leaf 520W Monofacial Panel - N-type TOPCon Full Black Solar Module | W/ 10-30% Additional Energy | Black Aluminum Frame| IP68 Rated | Mc4 Connectors

Maple Leaf 520W Monofacial Panel - N-type TOPCon Full Black Solar Module | W/ 10-30% Additional Energy | Black Aluminum Frame| IP68 Rated | Mc4 Connectors

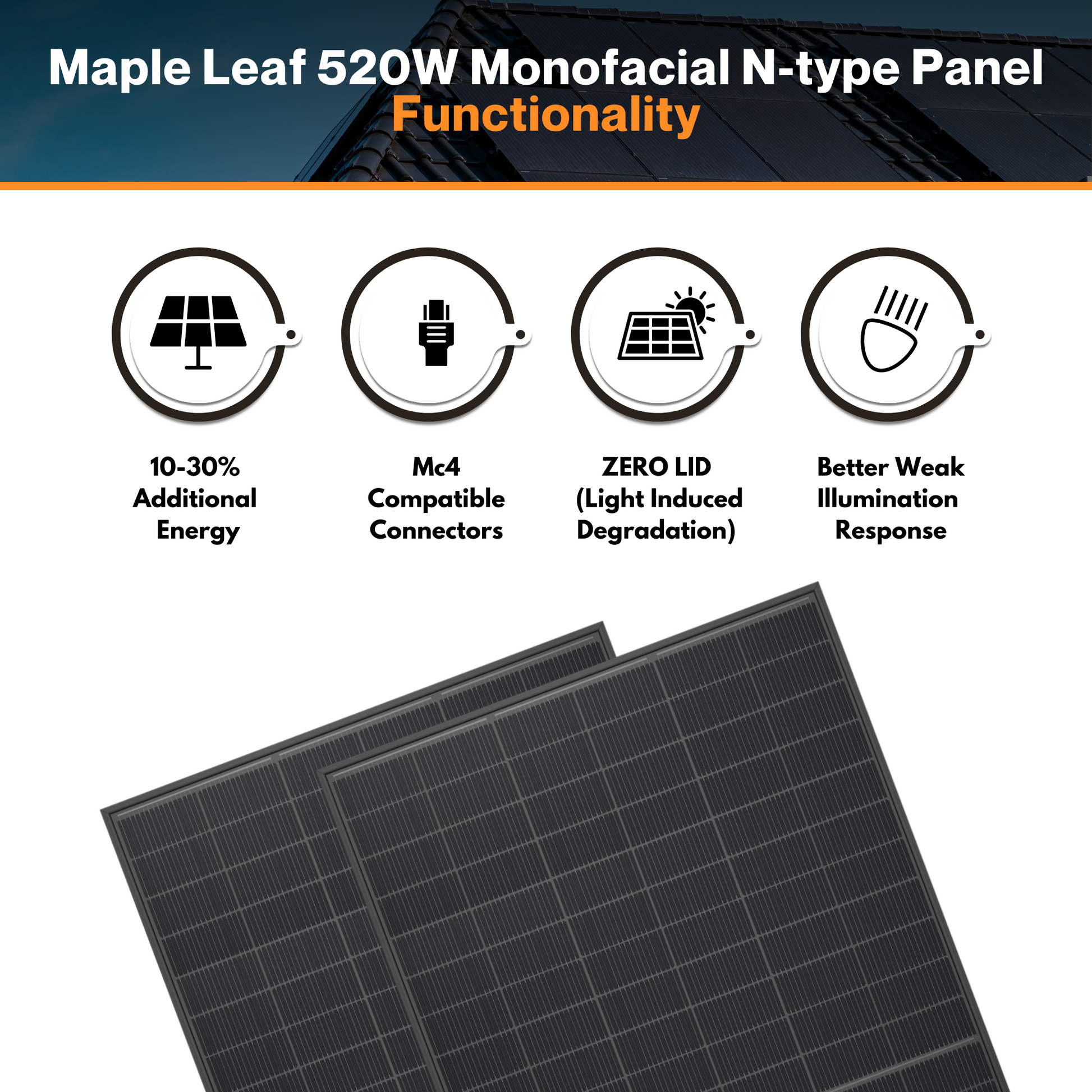

The Maple Leaf 520W Monofacial N-type Panel provides 10-30% additional energy generation than typical P-type modules and has a 30-year lifespan. Its N-type solar cells provide ZERO Light Induced Degradation (LID), resulting in increased energy output. The panel, which uses Mate Solar's S-TOPCo 2.0 technology, delivers full electrical isolation and 0% leakage current, ensuring greater rooftop safety. With greater low-light performance and an enhanced temperature coefficient, the Maple Leaf 520W panel generates more power throughout all operating situations, by using innovative passivating contact cell technology.

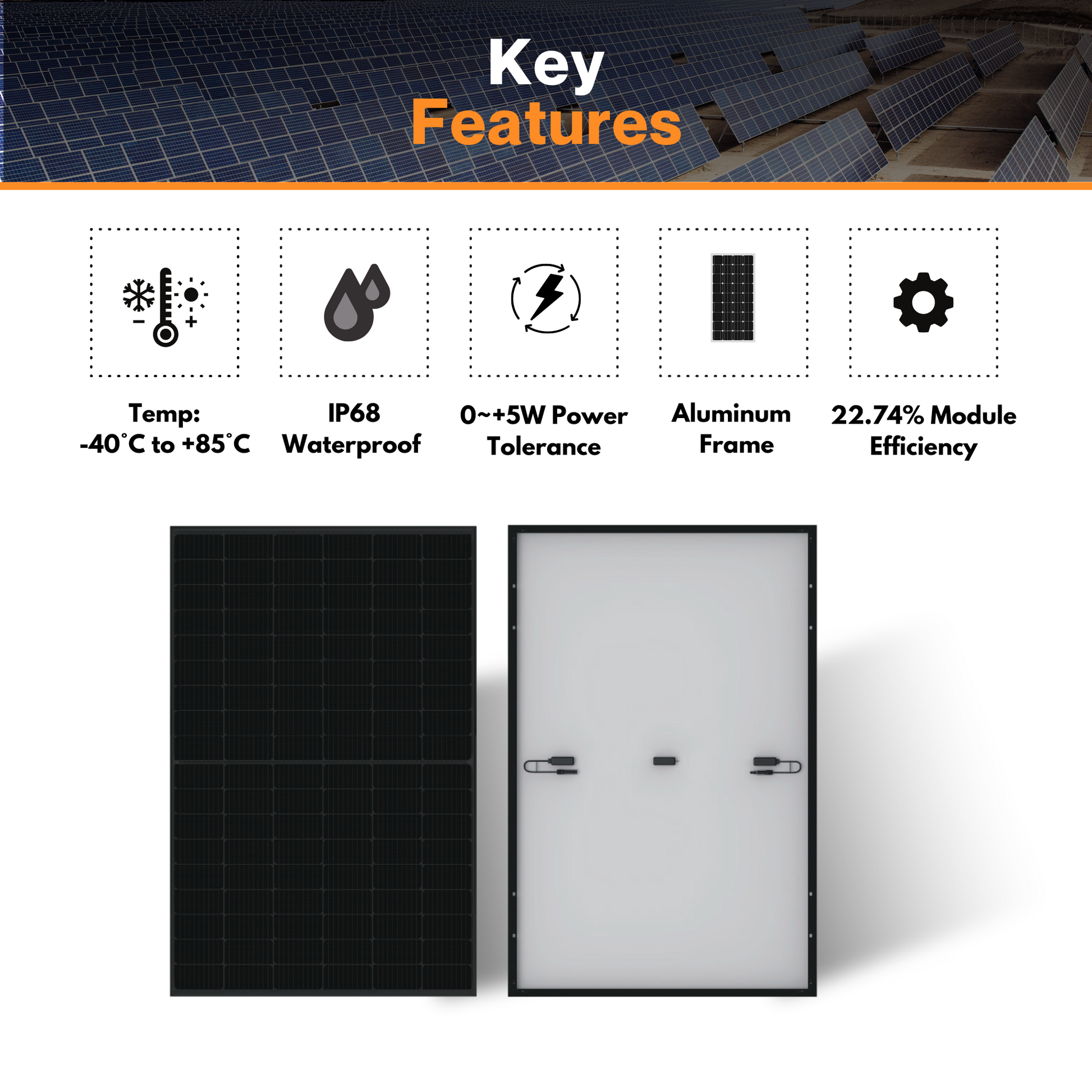

Key features:

  • 10-30% Additional Power Generation: The Maple Leaf 520W Monofacial N-type Panel generates an amazing 10-30% additional energy than traditional P-type modules. Boasting a 30-year lifespan, this powerhouse provides greater energy production and better savings, thus providing a sound long-term investment.
  • ZERO LID (Light Induced Degradation): This panel's N-type solar power cells naturally withstand Light Induced Degradation (LID). That means no more worrying about efficiency degradation throughout time; instead, experience continuous, high power generation year over year, ensuring your energy production remains consistent and predictable.
  • Higher Reliability: The Maple Leaf 520W panel incorporates cutting-edge S-TOPCo 2.0 technology, delivering exceptional reliability as well as security. It's intended for optimum rooftop safety, with full electrical separation, zero current leakage, and no polysilicon wrap-around, providing customers with peace of mind and consistent performance.
  • Better Weak Illumination Response: Don't allow adverse weather to disrupt your energy output. This panel performs well in low-light situations, especially on cloudy or foggy days, assuring uninterrupted power generation. Maximize your energy production while maintaining those lights on regardless of the weather.
  • Better Temperature Coefficient: The Maple Leaf 520W panel offers greater power under different settings due to its exceptionally weak illumination response and increased temperature coefficient. It retains high productivity and output due to passivating contact cell technology, resulting in an excellent solution for a variety of temperatures and lighting circumstances.
  • Robust Warranty: Make an investment with confidence being aware that the Maple Leaf 520W Monofacial N-type Panel includes a full 25-year warranty on materials and manufacturing. In addition, the enhanced linear power output comes with a 30-year warranty, guaranteeing long-term performance and reliability. Your solar investment is secured, providing long-term value and energy savings.
  • Quality Management System and Product Certification: The Maple Leaf 520W panel stands out for its dedication to the highest standards. It is ISO 9001:2015 quality management and ISO 14001:2015 environmental management certified, as well as UL, CSA, CE, and TUV certified. This provides exceptional reliability, security, and environmental responsibility, thus providing a dependable and environmentally beneficial option for your energy requirements.

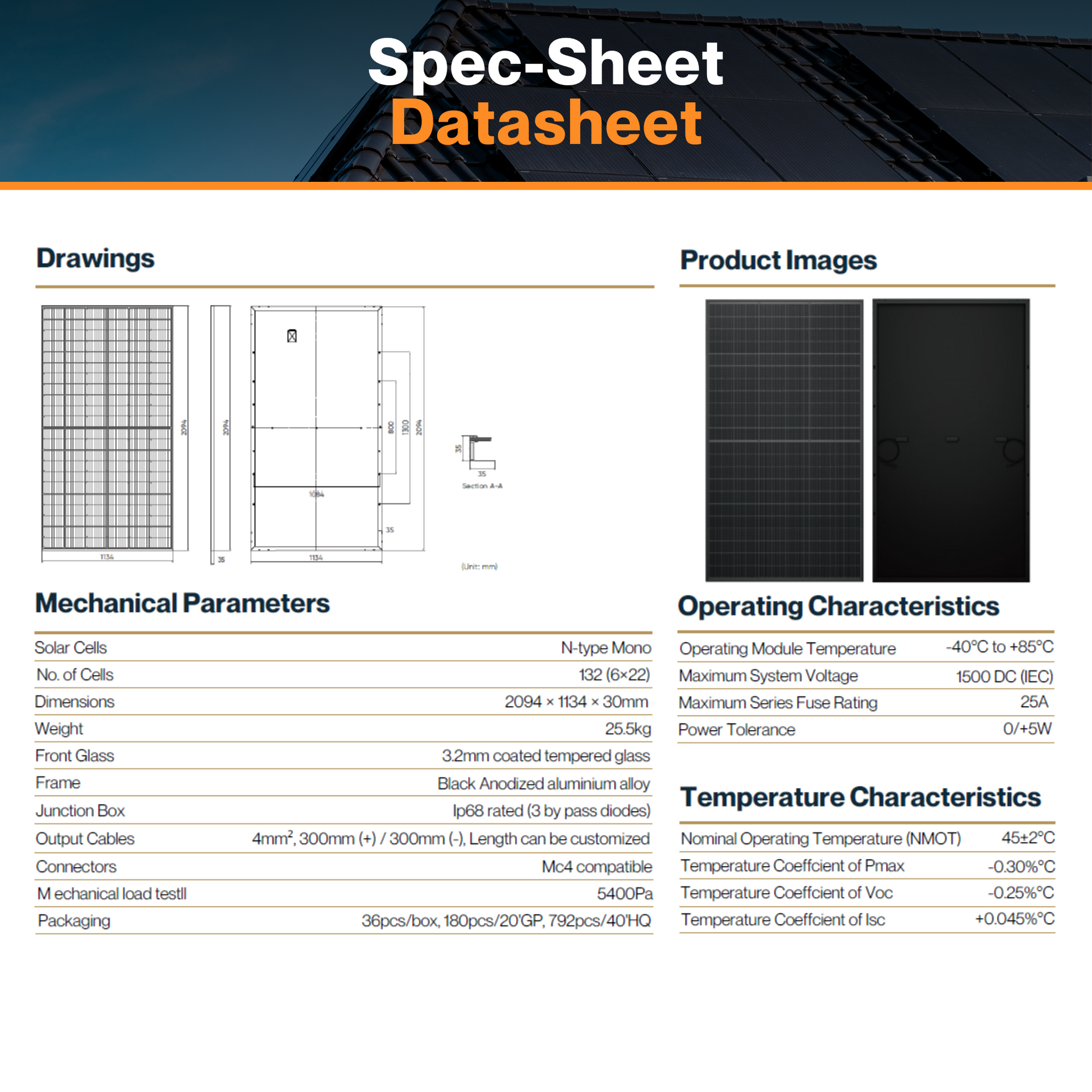

Product Specifications:

  • Solar Cells: N-type Mono
  • No. of Cells: 132 (6×22)

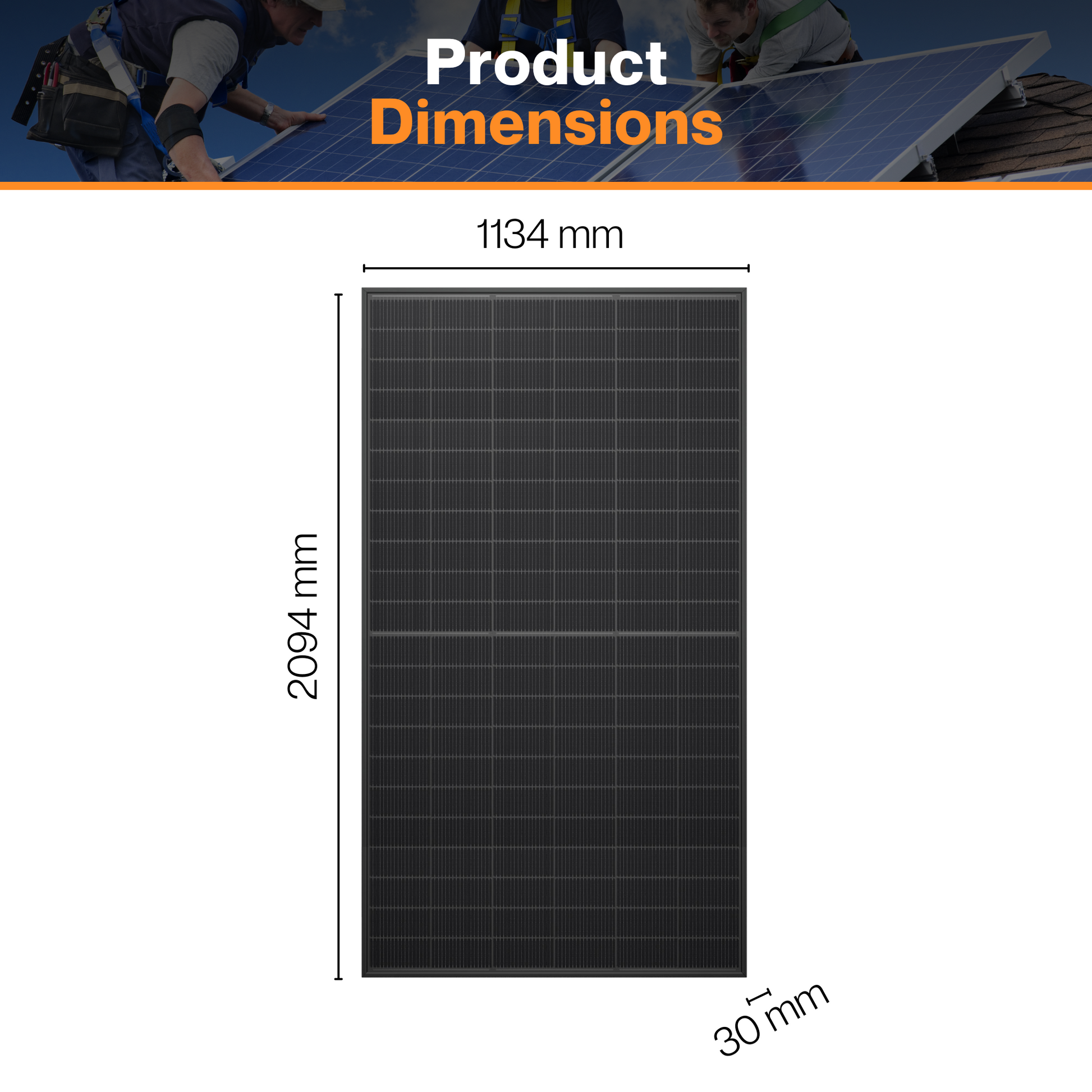

  • Dimensions: 2094 × 1134 × 30mm
  • Weight: 25.5kg
  • Front Glass: 3.2mm coated tempered glass
  • Frame: Black Anodized aluminum alloy
  • Junction Box: IP68 rated (3 bypass diodes)
  • Output Cables: 4mm², 300mm (+) / 300mm (-), Length can be customized
  • Connectors: Mc4 compatible
  • Mechanical load test: 5400Pa
  • Packaging: 36pcs/box, 180pcs/20'GP, 792pcs/40'HQ
