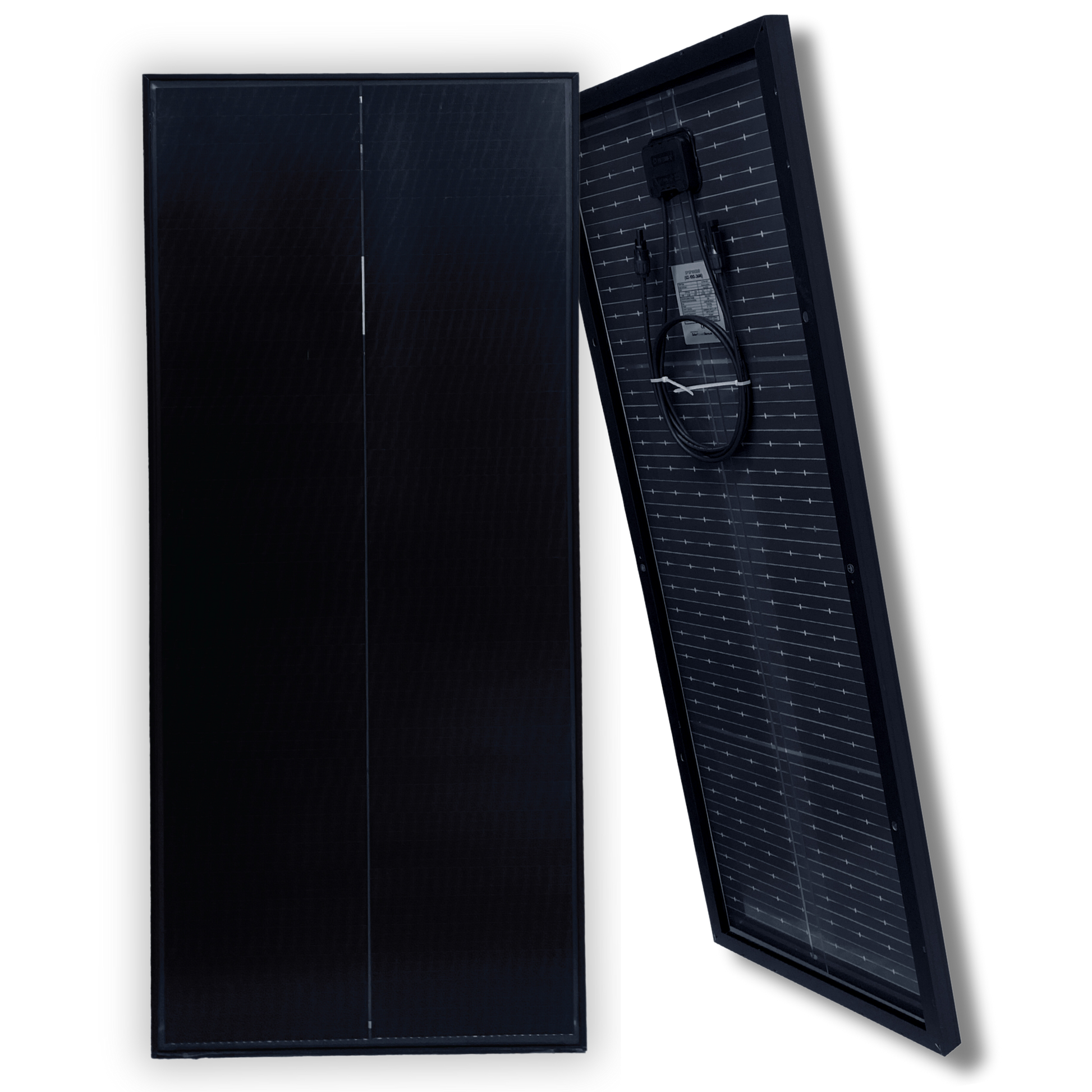

Maple Leaf 100W Mono Rigid Bi-facial Solar Panel - All Black | W/ IP67 Junction Box & IP67 MC4 Cable | Lightweight With Monocrystalline Cells

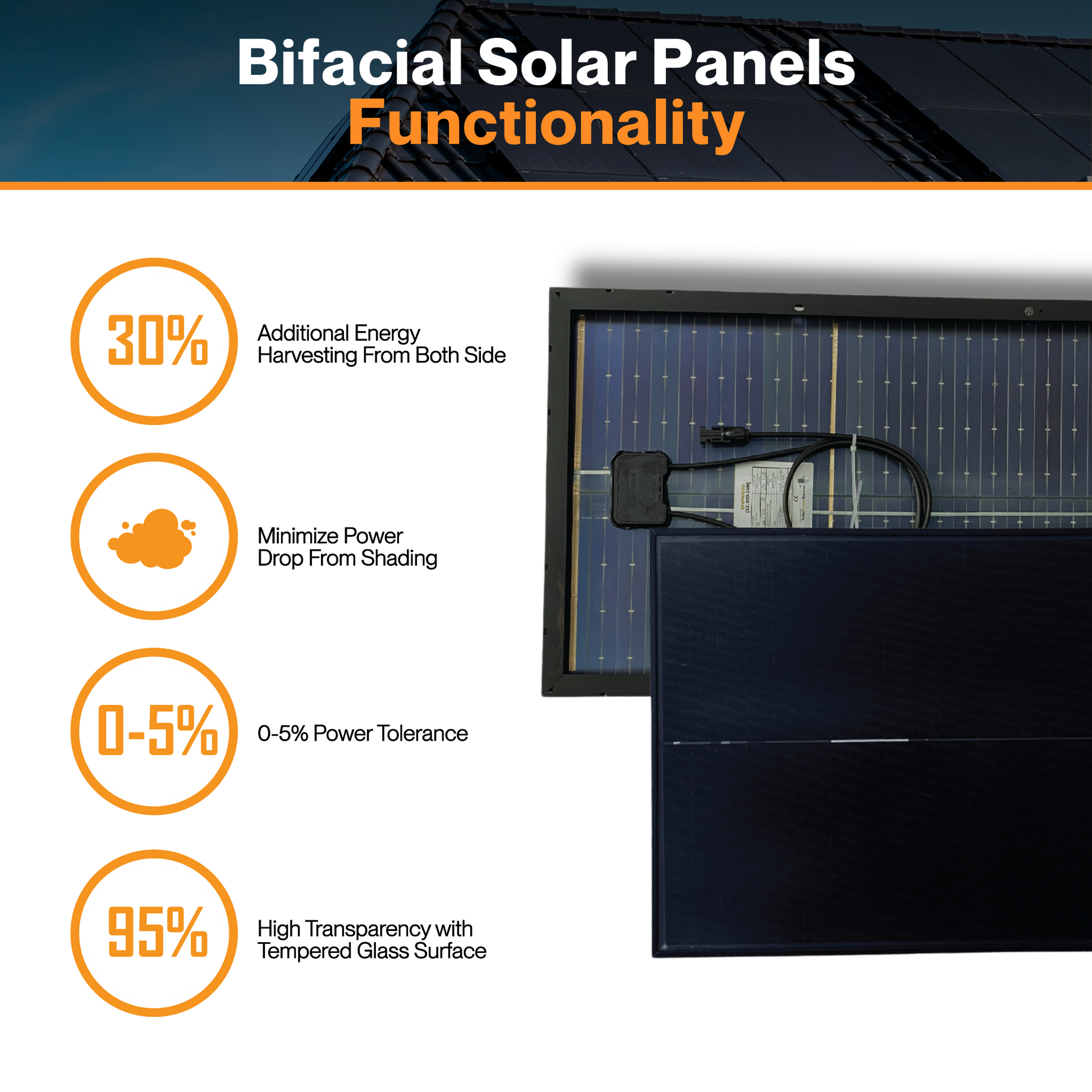

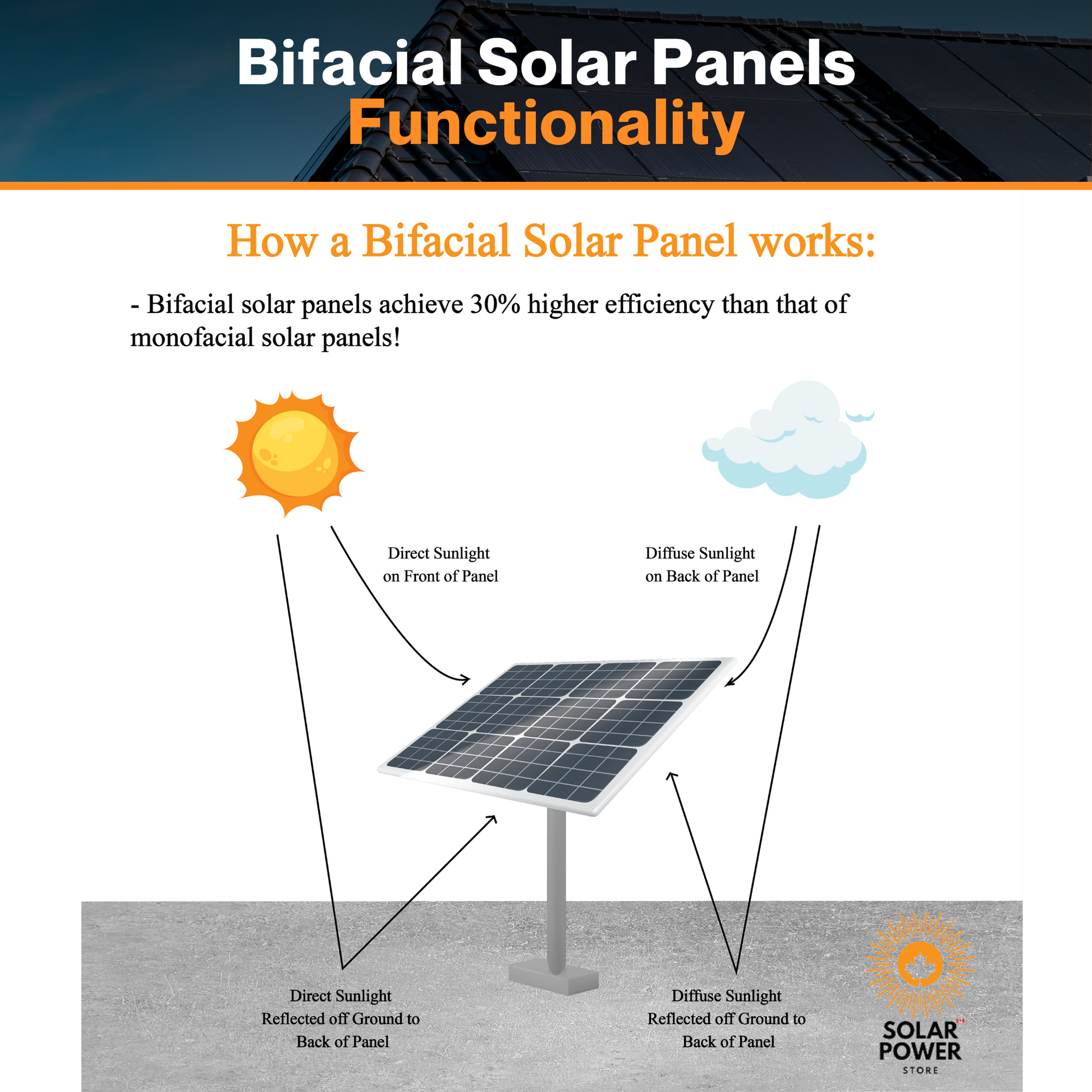

Introducing the groundbreaking 100W Monorigid Bifacial Solar Panel, a game-changer in renewable energy. Capturing sunlight from both sides, it boasts a remarkable 30% increase in energy yield compared to conventional panels. Advanced technologies, half-cut cells, and bypass diodes ensure optimal performance, thriving even in partial shade and snowy conditions.

Perfect for off-grid living, the panel is pre-drilled for quick installation on RVs, rooftops, and various applications. Engineered for longevity, this solar panel features an IP67-rated junction box, demonstrating resilience against challenging weather conditions. With the ability to withstand wind loads up to 2400Pa/0.35 PSI and snow loads up to 5400Pa/0.75 PSI, it's a reliable, long-term investment for sustainable energy.

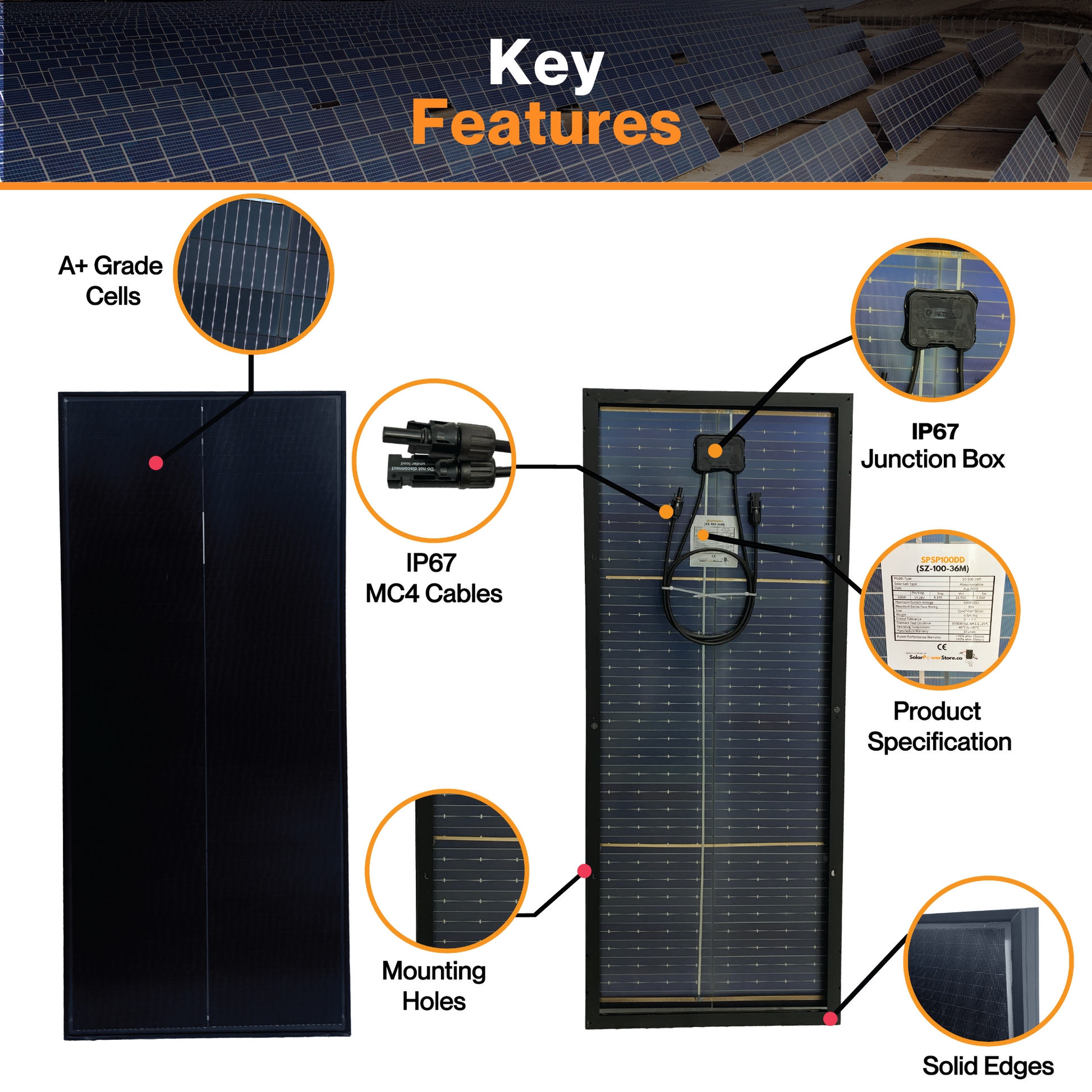

Key Features:

• State-of-the-art technology for Maximum Efficiency: Discover the potential of our 100W Mono Rigid Solar Panel, which is created from ultra-pure monocrystalline silicon cells. This technology, which is enhanced by sophisticated multi-layered lamination, ensures a high rate of conversion and high efficiency, leading to remarkable solar performance.

• Consistent Power Output You Can Count On: Our 100W Mono Rigid Solar Panel provides continuous power generation. This panel efficiently generates a significant amount of Watt-hours (Wh) of electricity, ensuring a dependable and robust energy solution. Whether for residential or commercial use, its durable construction guarantees long-lasting performance and reliability.
• Comprehensive Multi-Protection Features: Endurance to avoid hotspot heating. Bypass diodes safeguard against overheating and keep the system running smoothly, even if some cells are mistakenly shaded. It will send current around those underperforming cells.

• Engineered for Endurance and Longevity: The long-lasting, corrosion-resistant aluminum structure ensures optimal outdoor functionality for an extended period of time, even in the face of severe winds (2400Pa) and heavy snow loads (5400Pa). The IP67 waterproof rating of the junction box increases its resistance to contaminants, atmospheric particles, and low-pressure streams of water.

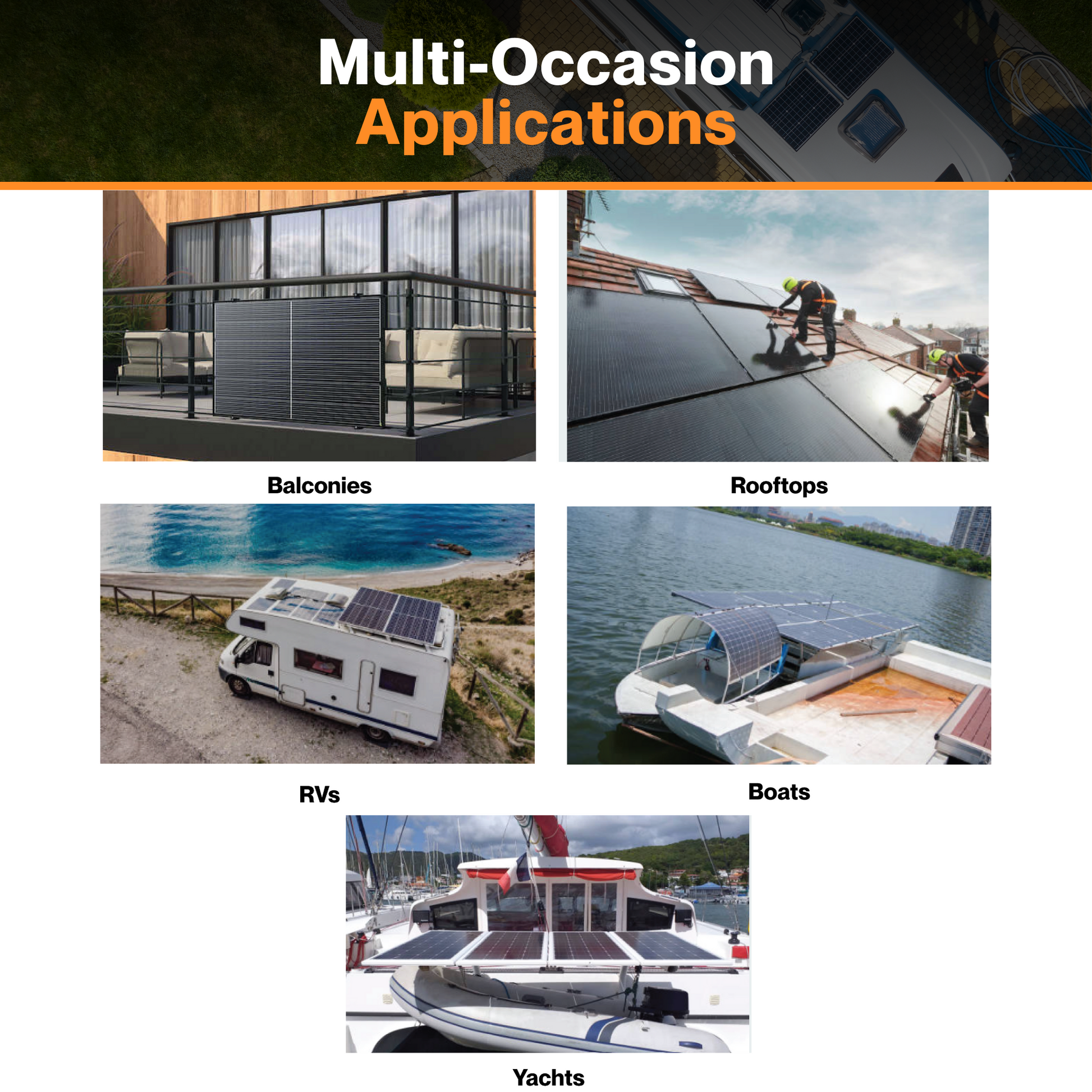

• Effortless Installation Tailored to Your Needs: The back of the panel has pre-drilled holes that make installation simpler. Ideal for a variety of off-grid applications, including buildings, trucks, automobiles, rooftops, marine, cabins, boats, and RVs. Compatibility with a variety of mounts, including ground mounting, Z mounting brackets, angle mounting brackets, floor mounting poles, and tilted mounting, ensures a simple installation adapted to your unique requirements.

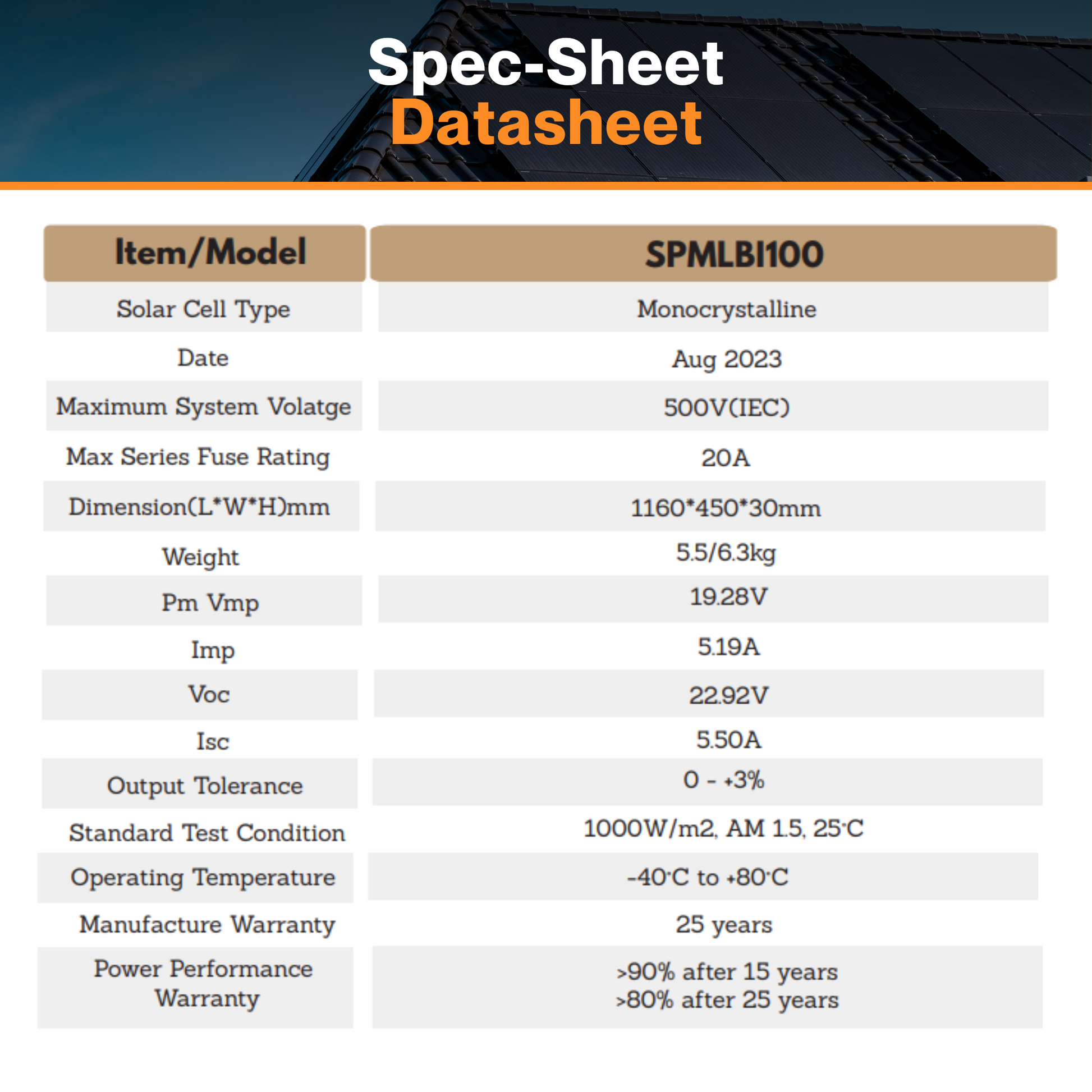

Product Specification

• Solar Cell Type: Monocrystalline
• Date: Aug 2023
• Maximum Power Current(Imp): 5.19A
• Open Circuit Voltage(Voc): 22.92V
• Short Circuit Current(Isc): 5.50A
• Maximum Power Voltage(Vmp): 19.28V
• Standard Test Condition: 1000W/m2, AM 1.5, 25°C
• Working Temperature: -40°C to +80°C
• Maximum System Voltage: 500V(IEC)

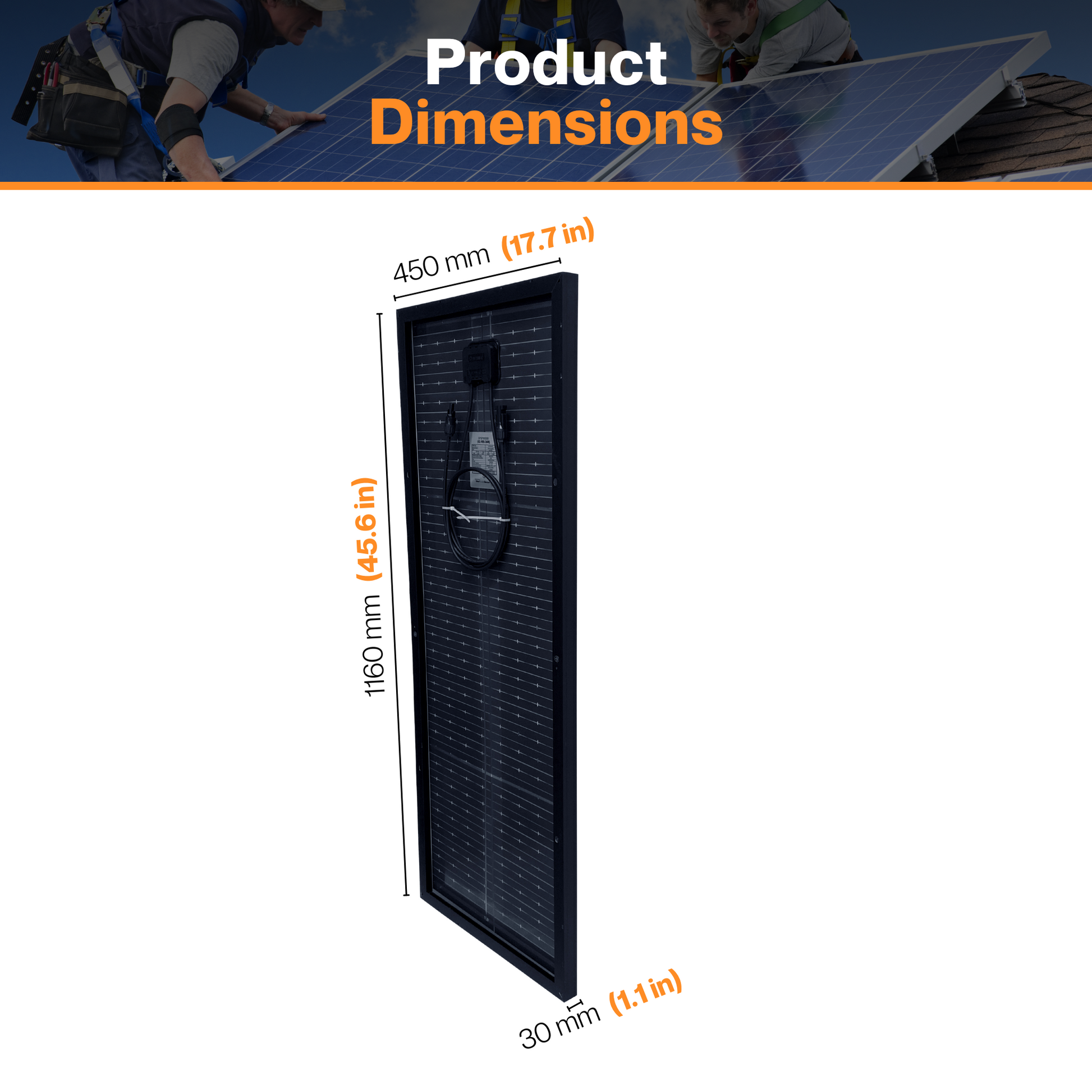

• Dimension: 1160*450*30mm
• Maximum Series Fuse Rating: 20A

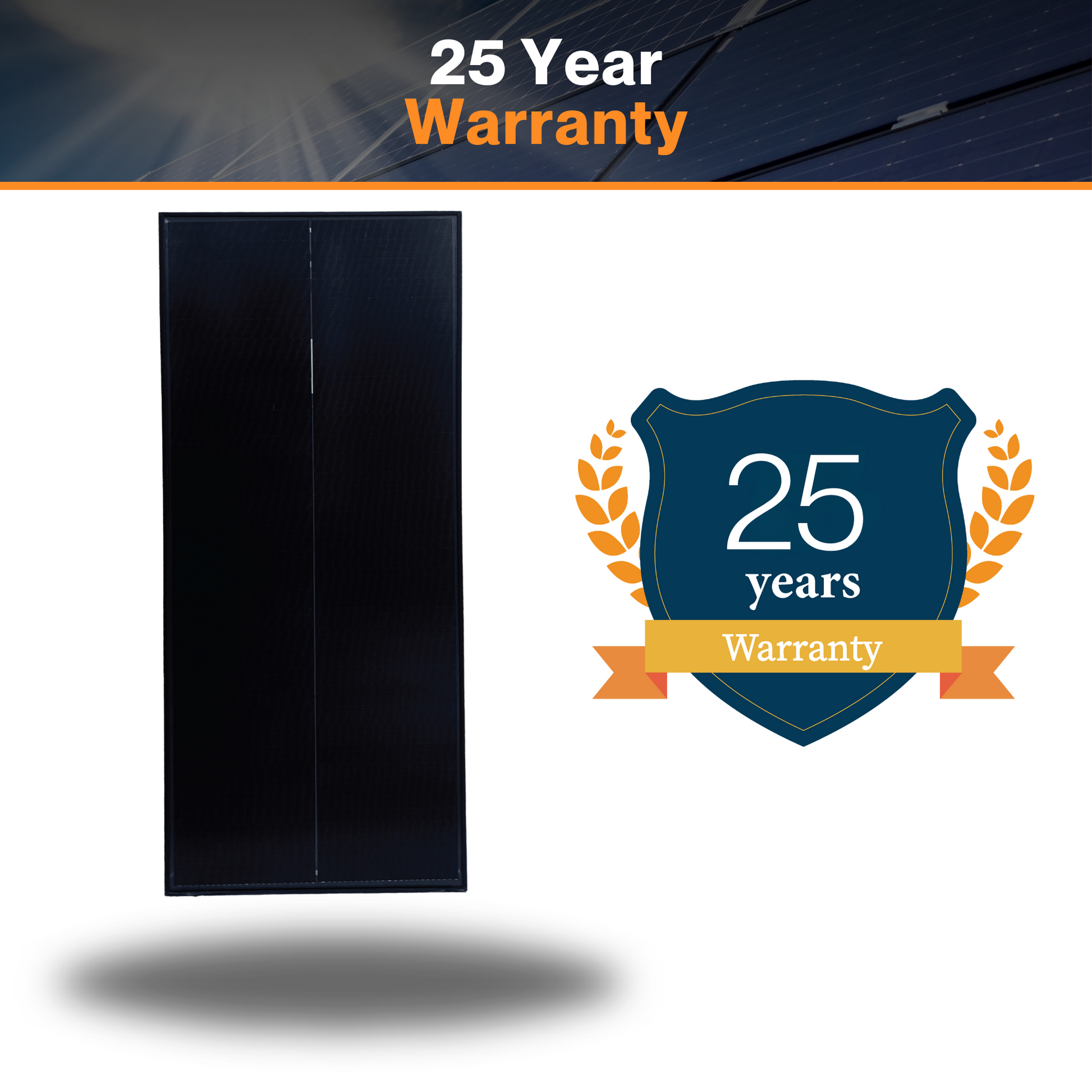

• Manufacture Warranty: 25 Years
• Weight: 5.5/6.3 Kg
• Power Performance Warranty: >90% after 15 years and>80% after 25 years
